  11. Square Turning Insert, Square, 4, SNGN, 3, Ceramic

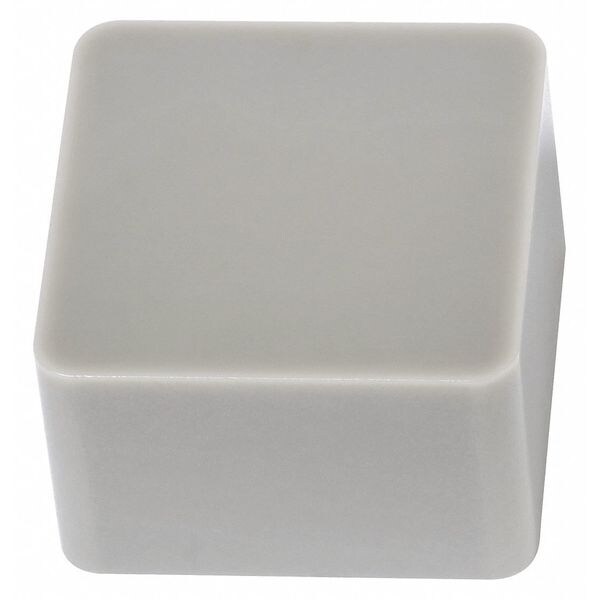

Walter Square Turning Insert, Square, 4, SNGN, 3, Ceramic SNGN120712T02020 WCK10 - main

Square Turning Insert, Square, 4, SNGN, 3, Ceramic

  • Mfr # SNGN120712T02020 WCK10

  • Zoro # G4876002

product price: $47.49
/ea
Sold in multiples of 10 for $474.90

Key Features

Insert Shape
Square
Insert Style
SNGN
Inscribed Circle
4
Insert Size
453
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SNGN120712T02020 WCK10
Zoro #
G4876002
UPC #
-
Country of Origin
Japan

Dimensions

Insert Size
453
Corner Radius
3
Insert Thickness
0.3130"
Nose Radius
0.047"
Mounting Hole Dia.
0"
Cutting Edge Length
12.70mm
Thickness
5/16 in
Depth of Cut
0.10 to 5.00mm

Details

Item
Square Turning Insert
Insert Shape
Square
Insert Style
SNGN
Inscribed Circle
4
Chip-Breaker
Yes
Grade
WCK10
Insert Material
Ceramic
Insert Application
Roughing
Rake
Negative
ISO Number
SNGN120712T02020
No. of Edges
4
Relief Angle
0 Degrees
Mounting Style
Clamp
Cutting Direction
Neutral
Cast Iron (K) Compatibility
Yes
Super Alloy (S) Compatibility
No
Stainless (M) Compatibility
No
Steel (P) Compatibility
No
ANSI Number
SNGN453T02020 WCK10
Hardened (H) Compatibility
No
Non Ferrous (N) Compatibility
No
Workpiece Compatibility
Cast Iron (K)
For Use With
Toolholders, Boring Bars
Coating
Uncoated
Material - Machining
Ceramic
Clearance Angle
0 Degrees
Primary Material Application ISO Code
K
Primary Material Application
Cast Iron
Shape
Square
Manufacturer Grade
WCK10
Chip-Breaker Code
T02020
Chamfer Angle
20 Degrees
ANSI Code
SNGN453T02020
Included Angle
90 Degrees
Material Grade - Machining
Silicon Nitride Si3N4
Measurement System
Fractional Inch
Cutting Application
Turning
Number of Cutting Edges
4
Cutting Edge
Chamfered
Insert Holding Type
No Screw Hole
Material
Ceramic

Description

Square Turning Insert, Chip-Breaker Code T02020, Inscribed Circle 1/2 in
