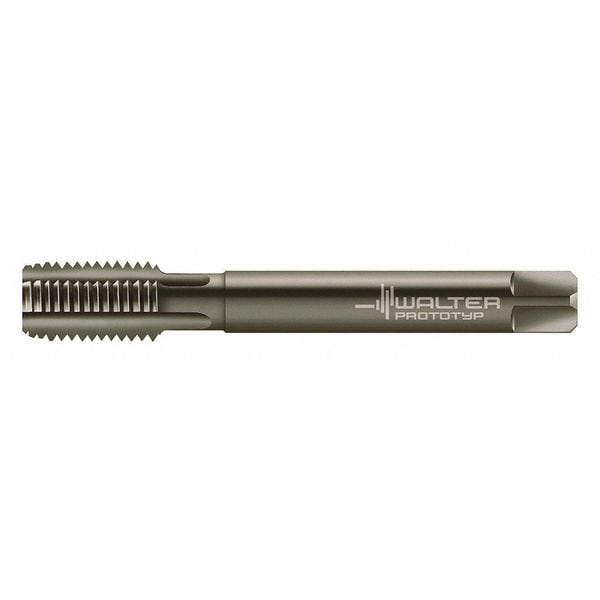

Straight Flute (Hand) Straight Flute Hand Tap, 3/8"-16, Plug, UNC, High Speed Steel, 4
Mfr # E22364-UNC3/8
Zoro # G2510048
product price:Â
$
65.39
/ea
Key Features
Shank Dia.
1/4"
Tap Material
High Speed Steel
Tap Chamfer
Plug
Tap Size
3/8"
Tap Style
Straight Flute (Hand)
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- E22364-UNC3/8
- Zoro #
- G2510048
- UPC #
- -
- Country of Origin
- Germany
Dimensions
- Shank Dia.
- 1/4"
- Tap Size
- 3/8"
- Tap Dimension Type
- Inch
- Overall Length
- 4"
- Thread Length
- 13/16"
- Tap Thread Size
- 3/8"-16
- Pitch Diameter Limit
- 2B
- Square Size
- 5.50 mm
- Thread Size
- 3/8"-16
- Tap Length Standard
- DIN 2184-1
- 55% Thread Drill Size
- 8.40 mm
- 65% Thread Drill Size
- P
- 75% Thread Drill Size
- 5/16 in
- Shank Length
- 23.00 mm
- Shank Diameter
- 7 mm
- Square Width
- 5.5 mm
- Square Length
- 5.5 mm
- Wire Rope Length
- 100 mm
- Length
- 100 mm
Description
Straight Flute Tap, Thread Size 3/8 In.-16, UNC, Modified Bottoming, Semi-Bottoming, Overall Length 100.00 mm, High Speed Steel, Black Oxide, Right Hand, Thread Length 20.00 mm, 75 Percent Thread Drill Size 5/16 in, Thread Limit H4, H5, Class of Fit 2B
