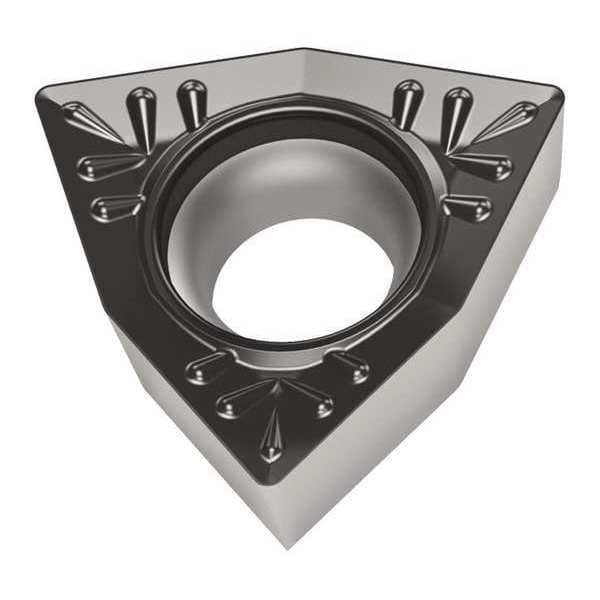

Walter Turning Insert, Trigon, 4, WCMT, 2, Carbide WCMT080408-RM4 WSM20S - main

Turning Insert, Trigon, 4, WCMT, 2, Carbide

  • Mfr # WCMT080408-RM4 WSM20S

  • Zoro # G7930085

product price: $24.39
/ea
Sold in multiples of 10 for $243.90

Key Features

Insert Shape
Trigon
Insert Style
WCMT
Inscribed Circle
4
Insert Size
432
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
WCMT080408-RM4 WSM20S
Zoro #
G7930085
UPC #
-
Country of Origin
Germany

Dimensions

Insert Size
432
Corner Radius
2
Mounting Hole Dia.
0.217"
Nose Radius
0.0310"
Insert Thickness
0.1880"
Through Hole Inside Dia.
5.50mm
Depth of Cut
0.60 to 4.00mm
Thickness
3
Cutting Edge Length
8.70mm

Details

Item
Turning Insert
Insert Shape
Trigon
Insert Style
WCMT
Inscribed Circle
4
Chip-Breaker
Yes
Grade
WSM20S
Insert Material
Carbide
Insert Application
Roughing
Rake
Positive
ISO Number
WCMT080408-RM4 WSM20S
No. of Edges
2
Workpiece Compatibility
Stainless (M), Steel (P), Super Alloy (S)
For Use With
Toolholders, Boring Bars
Steel (P) Compatibility
Yes
Hardened (H) Compatibility
No
Cutting Direction
Neutral
ANSI Number
WCMT432
Cast Iron (K) Compatibility
No
Relief Angle
7 Degrees
Stainless (M) Compatibility
Yes
Coating
PVD
Super Alloy (S) Compatibility
Yes
Mounting Style
Screw
Non Ferrous (N) Compatibility
No
Shape
Trigon
Included Angle
80 Degrees
Primary Material Application
Nickel, Stainless Steel, Titanium
ANSI Code
WCMT432-RM4 WSM20S
Primary Material Application ISO Code
M, S
Secondary Material Application ISO Code
P
Cutting Application
Turning
Measurement System
Metric
Chip-Breaker Code
RM4
Insert Holding Type
40 Degrees to 60 Degrees Countersink Hole
Material - Machining
Carbide
Coating Process
PVD
Finish - Machining
TiAlN+Al2O3+Al
Secondary Material Application
Steel
Manufacturer Grade
WSM20S
Clearance Angle
7 Degrees
Material
Carbide

Description

Turning Insert, Chip-Breaker Code RM4, Inscribed Circle 1/2 in, TiAlN+Al2O3+Al
