Walter

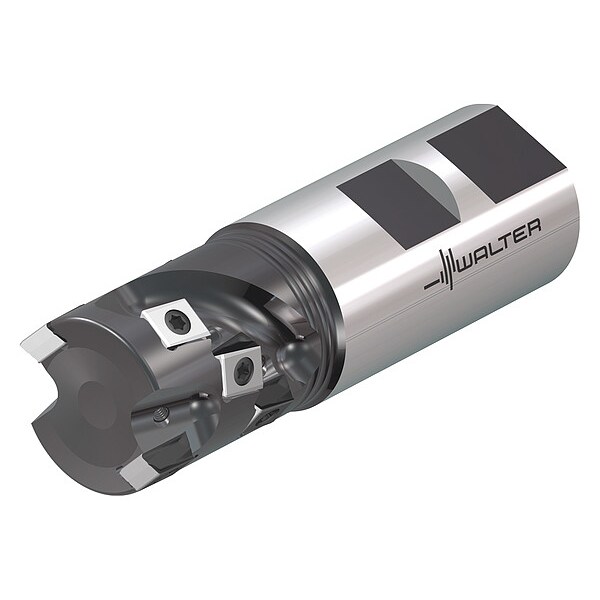

Walter - Helical Endmill Single Piece LN09

product price: $1,192.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Overall Length 3.9370"
  • Shank Dia. 0.9840 in
  • ISO Number F5038.W25.025.Z02.32
  • Standards DIN1835-B
  • Features 4 Cutting Edges Per Indexable Insert, Full Effective Design, Tangential Arrangement
See all product information

Product Information

Dimensions

Overall Length 3.9370"
Shank Dia. 0.9840 in
Depth of Cut 1.2600"
Max. Cutting Dia. 123/125 in

Details

Item Indexable Square Shoulder End Mill
ISO Number F5038.W25.025.Z02.32
Standards DIN1835-B
Features 4 Cutting Edges Per Indexable Insert, Full Effective Design, Tangential Arrangement
ANSI Code F5038.W25.025.Z02.32
Coolant Fed Coolant Through
Shank Type - Machining Weldon Flat
Side Cutting Edge Angle 90 Degrees
Max. Speed 39,600 RPM
Cutting Application Shoulder Milling
Toolholder Style F5038

Description

Indexable Square Shoulder End Mill, Max. Cutting Dia. 123/125 in, Shank Dia. 0.9840 in, Weldon Flat, Overall Length 3.9370 In., ANSI Code F5038.W25.025.Z02.32, Coolant Fed Coolant Through
