Pin and Sleeve Connector, 20A, 230/250, 1 Phase, 2 Pole, NEMA Not Rated
Mfr # 310306
Zoro # G116275771
product price:Â $59.39
/eaKey Features
Current Rating
20 A
Voltage Rating
230/250
Phase
1
Number of Poles
2
Number of Wires
3
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 310306
- Zoro #
- G116275771
- UPC #
- -
- Country of Origin
- Germany
Dimensions
- Height
- 2.67 in
- Length
- 6.05 in
- Width
- 2 in
Details
- Item
- Pin and Sleeve Connector
- Current Rating
- 20 A
- Voltage Rating
- 230/250
- Phase
- 1
- Number of Poles
- 2
- Number of Wires
- 3
- IP Rating
- IP44
- NEMA Enclosure Rating
- Not Rated
- Wire Connection Type
- Screw Terminals
- Housing Color
- Blue
- Cap Type
- Spring-Loaded Cap
- Standards
- IEC 60309, UL Listed, CSA Certified
- Cable Gland
- Flexible Cable Sleeve
- Material
- Thermoplastic
- Application
- Industrial Electrical
- Clock Position
- 6
Description

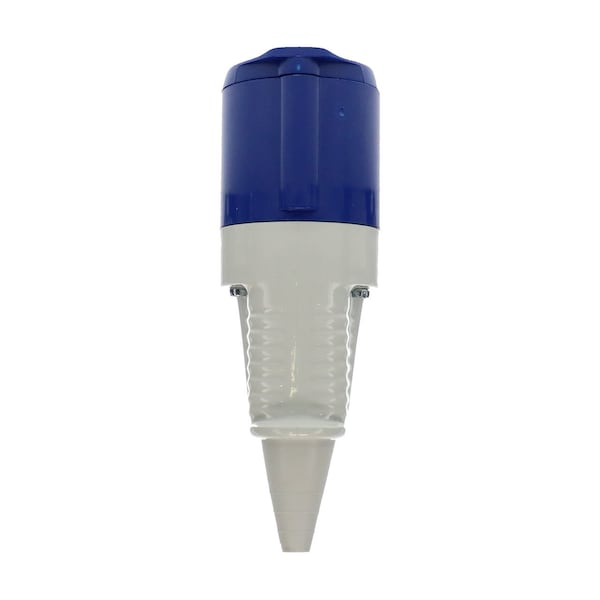

Walther Electric 310306 Pin and Sleeve Connector 16A/20A 3P 230/250 VAC 6hr IP44 Splashproof Blue is interchangeable with other IEC 60309 industrial grade 316C6/320C6 electrical connectors.
- UL Listed
- CSA Certified
- Flexible Cable Sleeve
- RETAINING DEVICE : Prevents unintentional withdrawal when male and female devices are connected
- SHROUDED PINS: Nickel-plated solid-brass pins offer corrosion protection and excellent conductivity
- FIRST MAKE/LAST BREAK (FMLB): Preventing making or breaking the circuit under load
- COLOR-CODED: All IEC 60309 Pin & Sleeve Devices are color-coded by voltage for easy Identification and safe pairing
- HIGH IMPACT THERMOPLASTIC: Heavy-duty insulated housings are resistant to corrosion and abrasions
