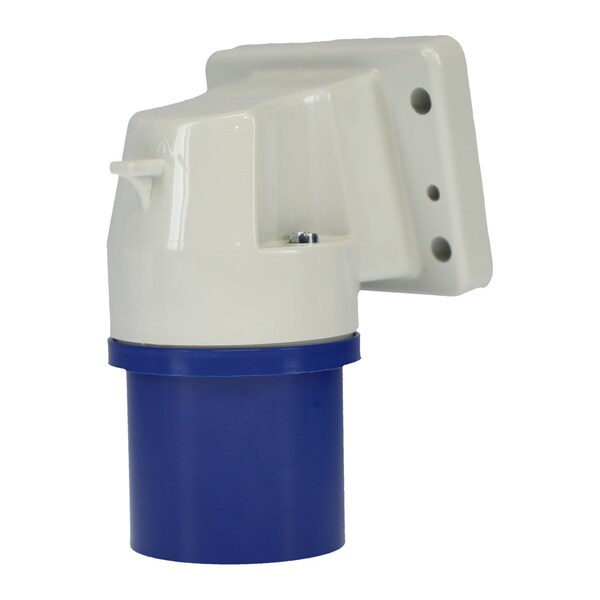

Pin and Sleeve Inlet, 20A, 230/250, 1 Phase, 2 Pole, NEMA Not Rated
Mfr # 611306
Zoro # G216275763
product price:
$
131.99
/ea
Free Shipping & Returns
Key Features
Current Rating
20 A
Phase
1
Number of Poles
2
Number of Wires
3
IP Rating
IP44
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 611306
- Zoro #
- G216275763
- UPC #
- -
- Country of Origin
- Germany
Dimensions
- Width
- 2.56 in
- Length
- 2.83 in
- Height
- 3.82 in
Details
- Item
- Pin and Sleeve Inlet
- Current Rating
- 20 A
- Voltage Rating
- 230/250
- Phase
- 1
- Number of Poles
- 2
- Number of Wires
- 3
- IP Rating
- IP44
- NEMA Enclosure Rating
- Not Rated
- Wire Connection Type
- Screw Terminals
- Housing Color
- Blue
- Cap Type
- No cap or cover
- Standards
- IEC 60309, UL Listed, CSA Certified
- Clock Position
- 6
- Application
- Industrial Electrical
- Cable Gland
- Angled 80°
- Material
- Thermoplastic
Description
Walther Electric 611306 Pin and Sleeve Inlet 16/20A 3 Wire 230/250 VAC 6Hr IP44 Splashproof Blue is interchangeable with other IEC 60309 industrial grade 320BA6 electrical inlets.
- UL Listed
- CSA Certified
- Angled 80°
- SHROUDED PINS: Nickel-plated solid-brass pins offer corrosion protection and excellent conductivity
- FIRST MAKE/LAST BREAK (FMLB): Preventing making or breaking the circuit under load
- COLOR-CODED: All IEC 60309 Pin & Sleeve Devices are color-coded by voltage for easy Identification and safe pairing
- HIGH IMPACT THERMOPLASTIC: Heavy-duty insulated housings are resistant to corrosion and abrasions
- SURFACE MOUNT: Includes 4 pre-drilled holes for quick and easy mounting
