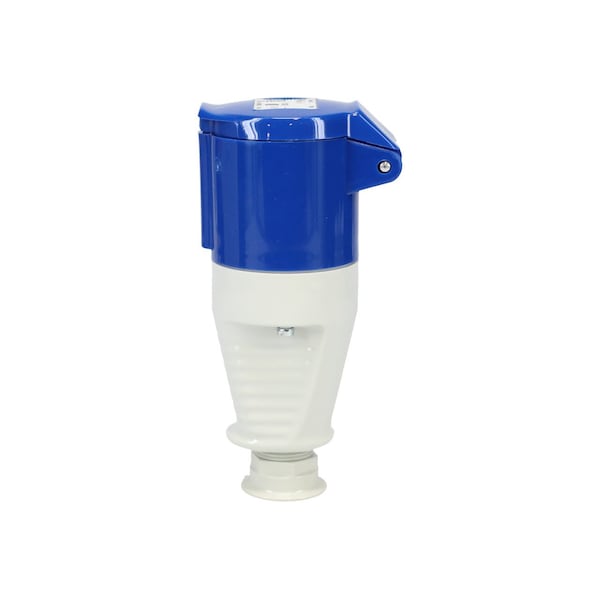

Pin and Sleeve Connector, 20A, 230/250, 1 Phase, 2 Pole, NEMA Not Rated
Mfr # 311306
Zoro # G616275769
product price: $83.49
/ea
Free Shipping & Returns
Key Features
Wire Connection Type
Screw Terminals
NEMA Enclosure Rating
Not Rated
Number of Wires
3
Voltage Rating
230/250
IP Rating
IP44
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
311306
Zoro #
G616275769
UPC #
-
Country of Origin
Germany
Dimensions
Height
2.68 in
Width
2.01 in
Length
5.31 in
Details
Wire Connection Type
Screw Terminals
NEMA Enclosure Rating
Not Rated
Number of Wires
3
Voltage Rating
230/250
IP Rating
IP44
Standards
IEC 60309, UL Listed, CSA Certified
Housing Color
Blue
Current Rating
20A
Number of Poles
2
Item
Pin and Sleeve Connector
Cap Type
Spring-Loaded Cap
Phase
1
Clock Position
6
Material
Thermoplastic
Cable Gland
Trumpet/Bell Gland
Application
Industrial Electrical
Description
Walther Electric 311306 Pin and Sleeve Coupler/Connector 16/20 Amp 3 Wire 230/250 VAC 6Hr IP44 Splashproof Blue is interchangeable with other IEC 60309 industrial grade 316C6/320C6 electrical connectors.
- UL Listed
- CSA Certified
- Trumpet/Bell Gland
- RETAINING DEVICE : Prevents unintentional withdrawal when male and female devices are connected
- SHROUDED PINS: Nickel-plated solid-brass pins offer corrosion protection and excellent conductivity
- FIRST MAKE/LAST BREAK (FMLB): Preventing making or breaking the circuit under load
- COLOR-CODED: All IEC 60309 Pin & Sleeve Devices are color-coded by voltage for easy Identification and safe pairing
- HIGH IMPACT THERMOPLASTIC: Heavy-duty insulated housings are resistant to corrosion and abrasions
