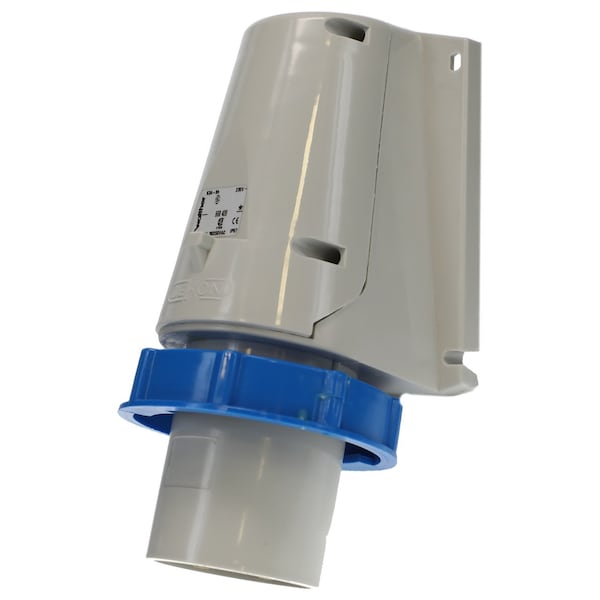

Pin and Sleeve Inlet, 60A, 3ø 250 or 230, 3 Phase, 3 Pole, NEMA Not Rated
Mfr # 668409
Zoro # G816275729
product price: $531.99
/ea
Free Shipping & Returns
Key Features
Current Rating
60 A
Voltage Rating
3ø 250 or 230
Phase
3
Number of Poles
3
Number of Wires
4
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
668409
Zoro #
G816275729
UPC #
-
Country of Origin
Germany
Dimensions
Height
9.13 in
Width
4.65 in
Length
4.65 in
Details
Item
Pin and Sleeve Inlet
Current Rating
60 A
Voltage Rating
3ø 250 or 230
Phase
3
Number of Poles
3
Number of Wires
4
IP Rating
IP67
NEMA Enclosure Rating
Not Rated
Wire Connection Type
Screw Terminals
Housing Color
Blue
Cap Type
No Cap or Cover
Standards
IEC 60309, UL Listed, CSA Certified
Application
Industrial Electrical
Clock Position
9
Material
Thermoplastic
Cable Gland
Surface Mount
Description
Walther Electric 668409 Pin and Sleeve Inlets 60/63A 4 Wire 230/3o 250 VAC 9Hr IP67 Watertight Blue is interchangeable with other IEC 60309 industrial grade 460B9W electrical inlets.
- UL Listed
- CSA Certified
- Surface Mount
- SHROUDED PINS: Nickel-plated solid-brass pins offer corrosion protection and excellent conductivity
- FIRST MAKE/LAST BREAK (FMLB): Preventing making or breaking the circuit under load
- COLOR-CODED: All IEC 60309 Pin & Sleeve Devices are color-coded by voltage for easy Identification and safe pairing
- HIGH IMPACT THERMOPLASTIC: Heavy-duty insulated housings are resistant to corrosion and abrasions
- SURFACE MOUNT: Includes 4 pre-drilled holes for quick and easy mounting
