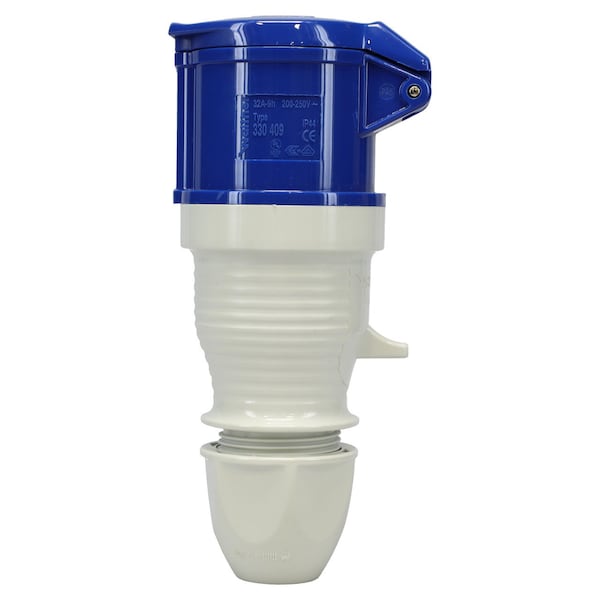

Pin and Sleeve Connector, 30A, 3ø 250 or 230, 3 Phase, 3 Pole, NEMA Not Rated
Mfr # 330409
Zoro # G616275721
product price: $132.99
/ea
Free Shipping & Returns
Key Features
Current Rating
30A
Voltage Rating
3ø 250 or 230
Phase
3
Number of Poles
3
Number of Wires
4
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
330409
Zoro #
G616275721
UPC #
-
Country of Origin
Germany
Dimensions
Width
2.83 in
Length
3.58 in
Height
7.83 in
Details
Item
Pin and Sleeve Connector
Current Rating
30A
Voltage Rating
3ø 250 or 230
Phase
3
Number of Poles
3
Number of Wires
4
IP Rating
IP44
NEMA Enclosure Rating
Not Rated
Wire Connection Type
Screw Terminals
Housing Color
Blue
Cap Type
Spring-Loaded Cap
Standards
IEC 60309, UL Listed, CSA Certified
Clock Position
9
Application
Industrial Electrical
Cable Gland
External Cable Gland
Material
Thermoplastic
Description
Walther Electric 330409 Pin and Sleeve Couplers 30A / 32A 4 Wire 230/3o250 VAC 9Hr IP44 Splashproof Blue is interchangeable with other IEC 60309 industrial grade 430C9/432C9 electrical connectors.
- UL Listed
- CSA Certified
- External Cable Gland
- RETAINING DEVICE : Prevents unintentional withdrawal when male and female devices are connected
- SHROUDED PINS: Nickel-plated solid-brass pins offer corrosion protection and excellent conductivity
- FIRST MAKE/LAST BREAK (FMLB): Preventing making or breaking the circuit under load
- COLOR-CODED: All IEC 60309 Pin & Sleeve Devices are color-coded by voltage for easy Identification and safe pairing
- HIGH IMPACT THERMOPLASTIC: Heavy-duty insulated housings are resistant to corrosion and abrasions
