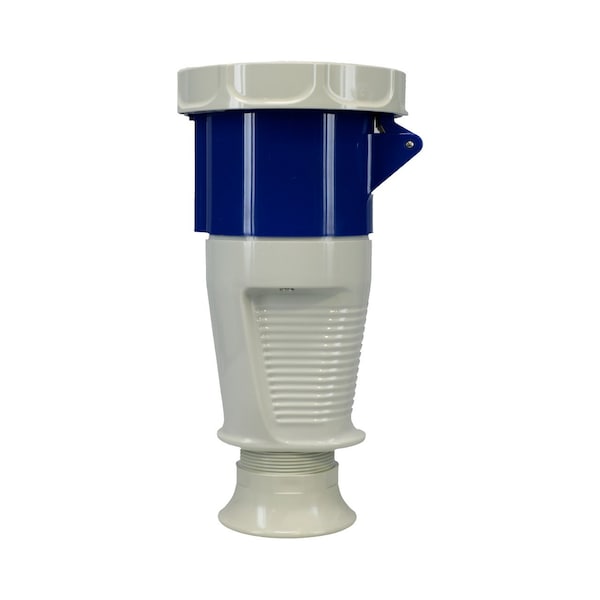

Pin and Sleeve Connector, 60A, 250, 1 Phase, 2 Pole, NEMA Not Rated
Mfr # 369306
Zoro # G916275735
product price: $419.99
/ea
Free Shipping & Returns
Key Features
Wire Connection Type
Screw Terminals
NEMA Enclosure Rating
Not Rated
Phase
1
IP Rating
IP67
Number of Wires
3
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
369306
Zoro #
G916275735
UPC #
-
Country of Origin
Germany
Dimensions
Height
7.2 in
Length
4.61 in
Width
4.33 in
Details
Item
Pin and Sleeve Connector
Current Rating
60A
Wire Connection Type
Screw Terminals
NEMA Enclosure Rating
Not Rated
Phase
1
Voltage Rating
250
IP Rating
IP67
Number of Wires
3
Standards
IEC 60309, UL Listed, CSA Certified
Number of Poles
2
Housing Color
Blue
Cap Type
Spring-Loaded Cap
Clock Position
6
Cable Gland
Trumpet/Bell Gland
Material
Thermoplastic
Application
Industrial Electrical
Description
Walther Electric 369306 Pin and Sleeve Connector 60/63A 3 Wire 230/250 VAC 6Hr IP67 Watertight Blue is interchangeable with other IEC 60309 industrial grade 360C6W electrical connectors.
- UL Listed
- CSA Certified
- Trumpet/Bell Gland
- RETAINING DEVICE : Prevents unintentional withdrawal when male and female devices are connected
- SHROUDED PINS: Nickel-plated solid-brass pins offer corrosion protection and excellent conductivity
- FIRST MAKE/LAST BREAK (FMLB): Preventing making or breaking the circuit under load
- COLOR-CODED: All IEC 60309 Pin & Sleeve Devices are color-coded by voltage for easy Identification and safe pairing
- HIGH IMPACT THERMOPLASTIC: Heavy-duty insulated housings are resistant to corrosion and abrasions
