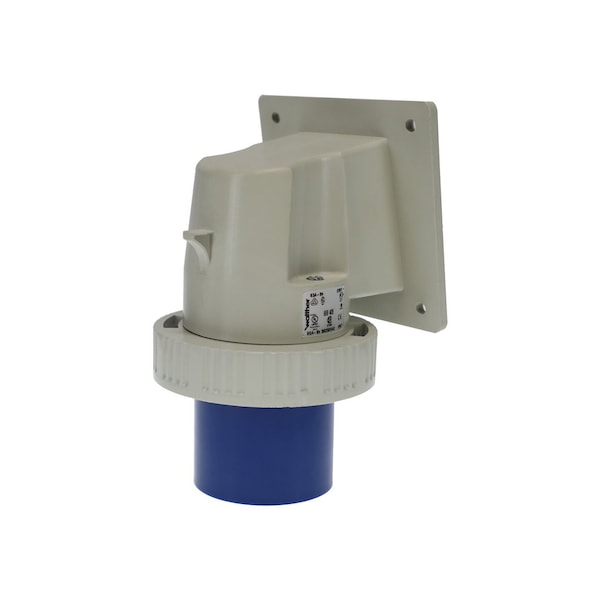

Pin and Sleeve Inlet, 30A, 3ø 250 or 230, 3 Phase, 3 Pole, NEMA Not Rated
Mfr # 639409
Zoro # G416275761
product price: $262.99
/ea
Free Shipping & Returns
Key Features
Current Rating
30A
Phase
3
Standards
IEC 60309, UL Listed, CSA Certified
Cap Type
No cap or cover
Number of Wires
4
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
639409
Zoro #
G416275761
UPC #
-
Country of Origin
Germany
Dimensions
Length
4.37 in
Height
5.16 in
Width
3.78 in
Details
Current Rating
30A
Phase
3
Standards
IEC 60309, UL Listed, CSA Certified
Cap Type
No cap or cover
Voltage Rating
3ø 250 or 230
Number of Wires
4
NEMA Enclosure Rating
Not Rated
Housing Color
Blue
Number of Poles
3
IP Rating
IP67
Wire Connection Type
Screw Terminals
Item
Pin and Sleeve Inlet
Application
Industrial Electrical
Material
Thermoplastic
Clock Position
9
Cable Gland
Angled 80°
Description
Walther Electric 639409 Pin and Sleeve Inlet 30/32A 4 Wire 3o 250 230 VAC 9Hr IP67 Watertight Blue is interchangeable with other IEC 60309 industrial grade 430BA9W electrical plugs.
- UL Listed
- CSA Certified
- Angled 80°
- SHROUDED PINS: Nickel-plated solid-brass pins offer corrosion protection and excellent conductivity
- FIRST MAKE/LAST BREAK (FMLB): Preventing making or breaking the circuit under load
- COLOR-CODED: All IEC 60309 Pin & Sleeve Devices are color-coded by voltage for easy Identification and safe pairing
- HIGH IMPACT THERMOPLASTIC: Heavy-duty insulated housings are resistant to corrosion and abrasions
- SURFACE MOUNT: Includes 4 pre-drilled holes for quick and easy mounting
