  9. Double Diaphragm Pump, Polypropylene, Air Operated, Santoprene, 5 GPM

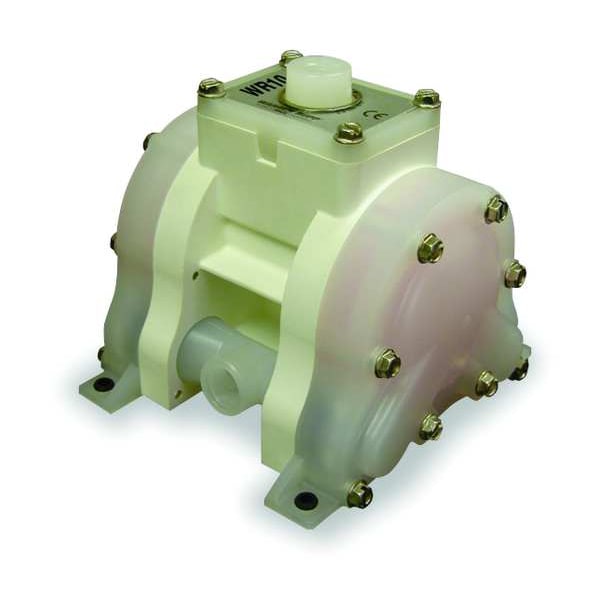

Warren-Rupp Double Diaphragm Pump, Polypropylene, Air Operated, Santoprene, 5 GPM WR10PP6XPP9. - main

Double Diaphragm Pump, Polypropylene, Air Operated, Santoprene, 5 GPM

  • Mfr # WR10PP6XPP9.

  • Zoro # G2933086

product price: $239.99
/ea
Free Shipping & Returns

Key Features

Housing Material - Pumps
Polypropylene
Manifold Connection
Multiport
Valve Material
Polypropylene
Valve Type
Poppet
Air Consumption (Maximum)
5 scfm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
WR10PP6XPP9.
Zoro #
G2933086
UPC #
-
Country of Origin
United States

Dimensions

Air Intake Connection Size
1/2 in NPT
Manufacturers Warranty Length
1 yr
Overall Height
5 23/32 in
Overall Length
4 3/32 in
Solid Diameter (Maximum)
1/10 in
Overall Width
5 21/64 in

Details

Item
Double Diaphragm Pump
Housing Material - Pumps
Polypropylene
Manifold Connection
Multiport
Valve Material
Polypropylene
Valve Type
Poppet
Air Consumption (Maximum)
5 scfm
Air Intake Connection Type
FNPT
Check Seat Material
Polypropylene
Diaphragm Material
Santoprene
Media Temperature (Maximum)
275 Degrees F
Operating Pressure (Maximum)
100 psi
Pump Operation Type
Air
Self-Priming Wet
10 ft
Agency Compliance
CE, EAC
Self-Priming Dry
8 ft
Standards
CE Certified, EAC
Inlet/Outlet
3/8 in
Media Discharge Connection Type
NPT
Manifold Connection Type
NPT
Media Intake Connection Type
FNPT
Chemical Compatibility
Ammonium Hydroxide, Calcium Carbonate, Hydrochloric Acid 10%, Hydrochloric Acid 20%, Phosphoric Acid 40%, Phosphoric Acid 50%, Potassium Hydroxide 50%, Sodium Hydroxide 20%, Sodium Hydroxide 50%, Sodium Hydroxide 80%, Sulfuric Acid 10%, Sulfuric Acid 20%, Sulfuric Acid 30%, Sulfuric Acid 40%, Sulfuric Acid 50%, Sulfuric Acid 60%, Sulfuric Acid 70%, Sulfuric Acid 80%, Water
Wetted Housing Material
Polypropylene
Flow Rate (Maximum)
184 gpm

Description

Double Diaphragm Pump, Air Consumption (Maximum) 5 scfm, Air Intake Connection Type FNPT, Check Seat Material Polypropylene, Diaphragm Material Santoprene, Manifold Connection Multiport, Media Discharge Connection Type NPT, Media Intake Connection Type FNPT, Media Temperature (Maximum) 275 Degrees F, Valve Material Polypropylene, Wetted Housing Material Polypropylene
