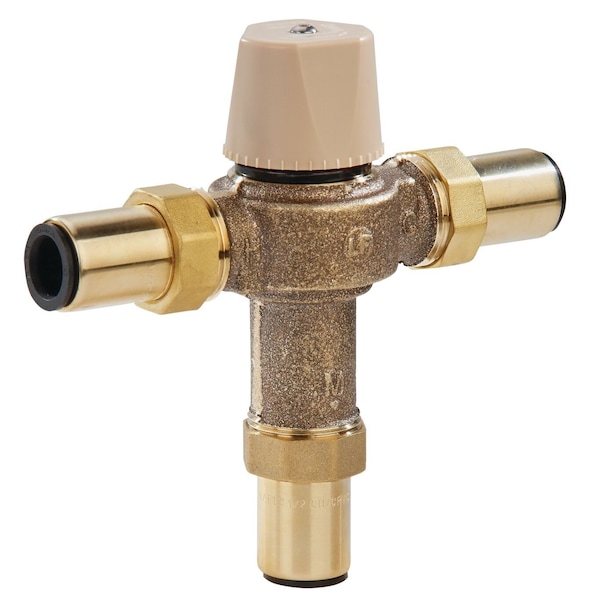

1/2 In Lead-Free Thermostatic Mixing Valve With Quick Connect End Connections
Mfr # 0559164
Zoro # G912415296
product price:Â $187.99
/ea
Free Shipping & Returns
Key Features
Outlet Type
Quick Connect
Inlet Type
Quick Connect
Body Material
Lead Free Copper Silicon Alloy
Width
1.5 in
Length
6.63 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
0559164
Zoro #
G912415296
UPC #
98268452426
Country of Origin
Unknown
Dimensions
Width
1.5 in
Length
6.63 in
Depth
6.25 in
Details
Outlet Type
Quick Connect
Inlet Type
Quick Connect
Body Material
Lead Free Copper Silicon Alloy
Finish
Rough Bronze
Description
This 1/2 inch lead free thermostatic mixing valve is designed for residential, commercial or institutional environments for supplying baths or lavatories with tempered water. The double throttling design controls both hot and cold water supply to the mixed outlet. It consists of a lead free brass body, quick-connect end connections, solid wax hydraulic principle thermostat, integral filter washers and check valves with a locking mechanism for the temperature setting. The adjustable field range temperature at mixed outlet is 80 to 120 degrees F 27 to 49 degrees C. The maximum pressure rating is 150 psi 10.3 bar.
