Shop WATTS

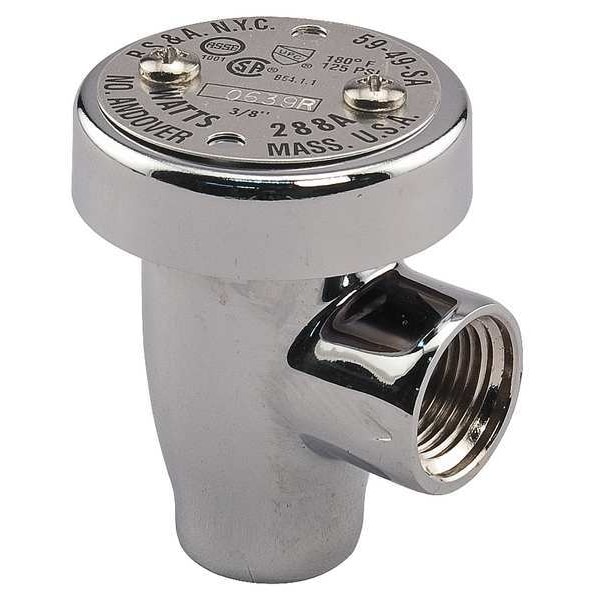

Anti-Siphon Vacuum Breaker, Silicone

  • Mfr # LF288AC-1/4"

  • Zoro # G6705921

product price:
$
110.99
/ea
Free Shipping & Returns

Key Features

Body Material
Lead Free Chrome Brass
Size
1/4"
Connection Type
NPT
Max. Pressure
125 psi
Seal
Silicone
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LF288AC-1/4"
Zoro #
G6705921
UPC #
098268434378
Country of Origin
Mexico

Dimensions

Size
1/4"
Height
2 1/4 in
Width
1 3/4 in
Pipe Size
1/4"
Nominal Valve Size
1/4 in
Connection Size - Side 1
1/4 in
Connection Size - Side 2
1/4 in

Details

Body Material
Lead Free Chrome Brass
Connection Type
NPT
Max. Pressure
125 psi
Seal
Silicone
Item
Anti-Siphon Vacuum Breaker
Standards
ANSI A112.1.1, ASSE 1001, cCSAus B64.1.1, NSF/ANSI 372, UPC
Temp. Range
33 Degrees to 180 Degrees F
Compliance
ANSI A112.1.1, ASSE 1001, CSA B64, Lead Free
Material of Construction
Lead Free Chrome Brass
Hazard Protection Level
High Hazard
Connection Type - Side 2
NPT
Maximum Pressure - Operating
125 psi
Includes Atmospheric Vent
Atmospheric Vent Included
Connection Type - Side 1
NPT
Connection Gender - Side 1
Female
Manufacturer Warranty
1 yr
Includes Freeze Protection
No Freeze Protection
Flow
7 gpm
Operating Temperature - Maximum
180 Degrees F
Connection Gender - Side 2
Female
Seal Material
Silicone
For Media
Water
Includes
Disc, Disc Float
Vacuum Breaker Style
Atmospheric Vacuum Breaker
Body Finish
Polished Chrome
Operating Temperature - Minimum
33 Degrees F
Seat Material
Silicone
Valve Series
LF288A

Description

Anti-Siphon Vacuum Breaker, Size 1/4 in, Connection Type NPT, Material of Construction Lead Free Chrome Brass, Seal Silicone, Max. Pressure 125 psi, Temp. Range 33 Degrees to 180 Degrees F, Height 2 1/4 in, Width 1 3/4 in, Standards ANSI A112.1.1, ASSE 1001, cCSAus B64.1.1, NSF/ANSI 372, UPC, Compliance ANSI A112.1.1, ASSE 1001, CSA B64, Lead Free, Disc, Disc Float
