  11. Backflow Preventer, Size 1", 175 psi

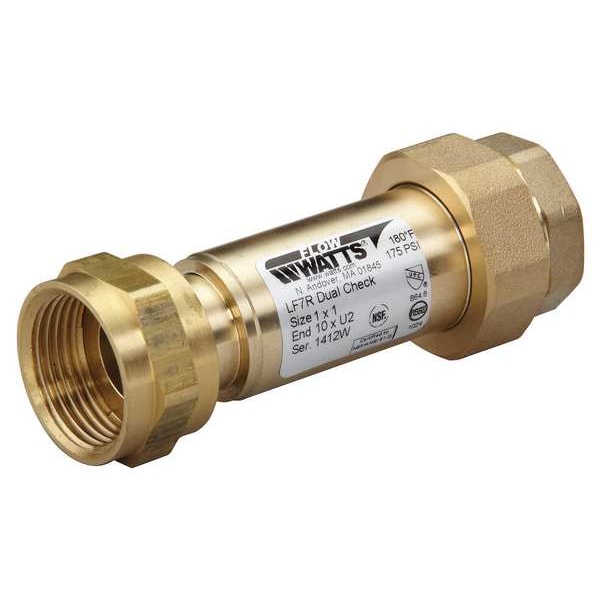

Watts Backflow Preventer, Size 1", 175 psi 1X1 LF7R10-U2 - main

Backflow Preventer, Size 1", 175 psi

  • Mfr # 1X1 LF7R10-U2

  • Zoro # G805303587

product price: $138.99
/ea
Free Shipping & Returns

Key Features

Body Material
Brass
Temp. Range
33 Degrees to 180 Degrees F
Length
4 1/2 in
Max. Temp.
180 Degrees F
Connection
FNPT
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1X1 LF7R10-U2
Zoro #
G805303587
UPC #
00098268824537
Country of Origin
United States

Dimensions

Length
4 1/2 in
Overall Height
1.88 in
Size
1 in
Height
1 7/8 in
Overall Length
4.5 in
Nominal Valve Size
1 in
Overall Width
1.88 in
Connection Size - Side 1
1 in
Connection Size - Side 2
1 in

Details

Item
Backflow Preventer
Body Material
Brass
Temp. Range
33 Degrees to 180 Degrees F
Max. Temp.
180 Degrees F
Connection
FNPT
Features
304 (Schedule 40) Stainless Steel Housing an Sleeve, Available with Combination of Inlet/Outlet Sizes, Types or Thread and End Connection, Can be Installed Vertically or Horizontally
Flow
26 gpm
Standards
ANSI, ASSE 1024
Max. Pressure
175 psi
Spring Material
Stainless Steel
Seat Material
EPDM
Hazard Protection Level
Low Health Hazard
Connection Gender - Side 2
Female
Seal Material
EPDM
Maximum Pressure - Operating
150 psi
Connection Type - Side 1
Meter Swivel
Mounting Orientation
Horizontal, Vertical
Operating Temperature - Minimum
33 Degrees F
For Media
Water
Check Mechanism Material
Plastic
Connection Type - Side 2
Union NPT
Operating Temperature - Maximum
180 Degrees F
Connection Gender - Side 1
Female
Manufacturer Warranty
1 yr
Valve Series
LF7R

Description

Backflow Preventer, Size 1 in, Connection FNPT, Body Material Brass, Temp. Range 33 Degrees to 180 Degrees F, Max. Temp. 180 Degrees F, Max. Pressure 175 psi, Width Not Applicable, Length 4 1/2 in, Height 1 7/8 in, Features 304 (Schedule 40) Stainless Steel Housing an Sleeve, Available with Combination of Inlet/Outlet Sizes, Types or Thread and End Connection, Can be Installed Vertically or Horizontally, Standards ANSI, ASSE 1024

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
