Shop WATTS

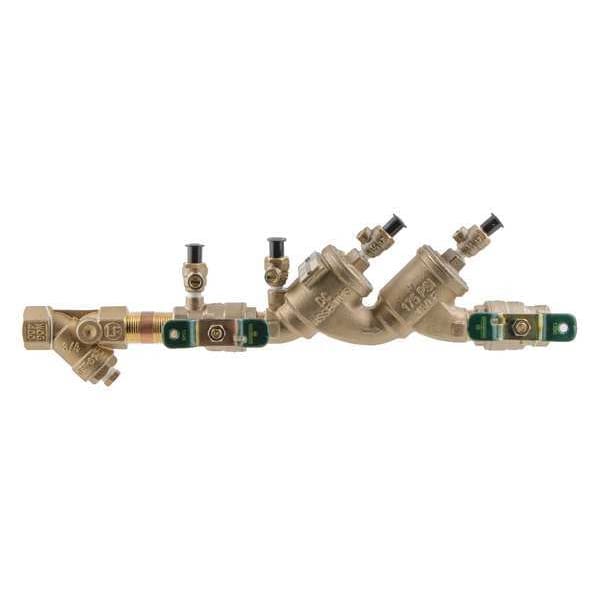

Double Check Valve, Watts 719, 1in, FNPT

  • Mfr # LF719-QT-S

  • Zoro # G1686679

product price:
$
871.99
/ea
Free Shipping & Returns

Key Features

Body Material
Lead Free Bronze
Temp. Range
33 Degrees to 180 Degrees F
Width
3 3/4 in
Pipe Size
1"
Size
1 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LF719-QT-S
Zoro #
G1686679
UPC #
098268236798
Country of Origin
United States

Dimensions

Width
3 3/4 in
Pipe Size
1"
Size
1 in
Length
14 13/16 in
Height
4 9/16 in
Overall Height
4.56 in
Nominal Valve Size
1 in
Connection Size - Side 2
1 in
Overall Length
19.5 in
Check Valve Length
9 5/8 in
Overall Width
3.75 in
Connection Size - Side 1
1 in
Wire Rope Length
19.5 in

Details

Item
Double Check Valve Assembly
Body Material
Lead Free Bronze
Temp. Range
33 Degrees to 180 Degrees F
Compliance
ASSE 1015, CSA, Lead Free, NSF, UPC, USC
Max. Temp.
180 Degrees F
Series
Watts 719
Max. Pressure
175 psi
Connection
FNPT
Features
Bronze Strainer, Lead Free, Quarter Turn Ball Valve
Standards
ASSE 1015, AWWA C510, CSA, cULus Classified, FM, NSF, UPC, USC-FCCCHR
Flow
60 gpm
Seat Material
Plastic
Connection Gender - Side 2
Female
Maximum Pressure - Operating
175 psi
Includes Flow Meter
No Flow Meter
Backflow Preventer Type
Double Check Assembly (DC)
Shut-Off Valve Included
Ball Valve
Operating Temperature - Minimum
33 Degrees F
Handle Type
Tee
Includes Freeze Sensor
No Freeze Sensor
Operating Temperature - Maximum
180 Degrees F
Includes Strainer
Strainer Included
Mounting Orientation
Horizontal, Vertical
For Media
Water
Connection Type - Side 2
IPS
Manufacturer Warranty
1 yr
Hazard Protection Level
Low Health Hazard
Connection Type - Side 1
IPS
Connection Gender - Side 1
Female
Valve Series
LF719

Description

Double Check Valve Assembly, Series Watts 719, Size 1 in., Connection FNPT, Body Material Bronze, Temp. Range 33 to 180 Degrees F, Max. Temp. 180 Degrees F, Max. Pressure 175 psi, Width 3-3/4 in., Length 14-13/16 in., Height 4-9/16 in., Features Lead Free, Quarter Turn Ball Valve, Bronze Strainer, Standards AWWA Standard C510 Compliant, Compliance ASSE 1015, UPC, CSA, NSF, USC, Lead Free
