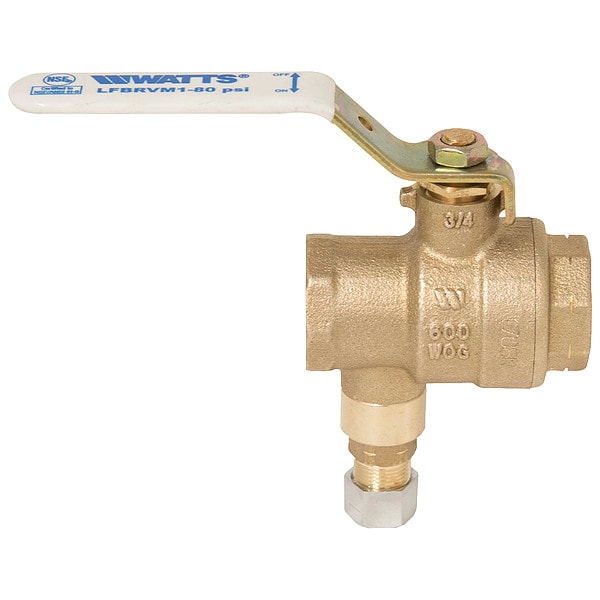

Watts Ball And Relief Valve, Bronze, 125 psi 3/4 LFBRVM1TXTXC-125 - main

Ball And Relief Valve, Bronze, 125 psi

  • Mfr # 3/4 LFBRVM1TXTXC-125

  • Zoro # G005747945

product price:  $109.65
/ea
Sold in multiples of 6 for $657.90
Free Shipping & Returns

Key Features

Inlet Size
3/4 in
Outlet Size
3/4 in
Body Material
Bronze
Outlet Type
FPT
Inlet Type
NPT
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
3/4 LFBRVM1TXTXC-125
Zoro #
G005747945
UPC #
098268094244
Country of Origin
China

Dimensions

Inlet Size
3/4 in
Outlet Size
3/4 in
Overall Height
4 5/8 in
Inlet Connection Size
3/4 in
Outlet Connection Size
3/4 in

Details

Item
Ball And Relief Valve
Body Material
Bronze
Outlet Type
FPT
Inlet Type
NPT
Factory Set Pressure
125 psi
Test Lever
Test Lever Not Included
Disc Material
Synthetic Rubber
Spring Material
Stainless Steel
Standards
CSA, IAPMO
Seat Material
PTFE
Application
Commercial, Residential, Water Heaters
Temp. Range
40 Degrees to 180 Degrees F
Compliance
CSA, IAPMO, NSF/ANSI 61/8
Inlet Connection Type
NPT
Outlet Connection Gender
Female
Operating Pressure - Maximum
400 psi
Operating Temperature - Minimum
40 Degrees F
Outlet Connection Type
FPT
For Media
Water
Operating Temperature - Maximum
180 Degrees F
Inlet Connection Gender
Female
NSF Certifications for Food and Drinking Water
NSF 61

Description

Ball And Relief Valve, Body Material Bronze, Inlet Type NPT, Outlet Type FPT, Inlet Size 3/4 in, Outlet Size 3/4 in, Factory Set Pressure 125 psi, Disc Material Synthetic Rubber, Overall Height 4 5/8 in, Application Commercial, Residential, Water Heaters, Seat Material PTFE, Spring Material Stainless Steel, Temp. Range 40 Degrees to 180 Degrees F, Test Lever Test Lever Not Included, Compliance CSA, IAPMO, NSF/ANSI 61/8, Standards CSA, IAPMO

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
This is a restricted item in the USA. It cannot be used for potable water applications.
