Shop WATTS

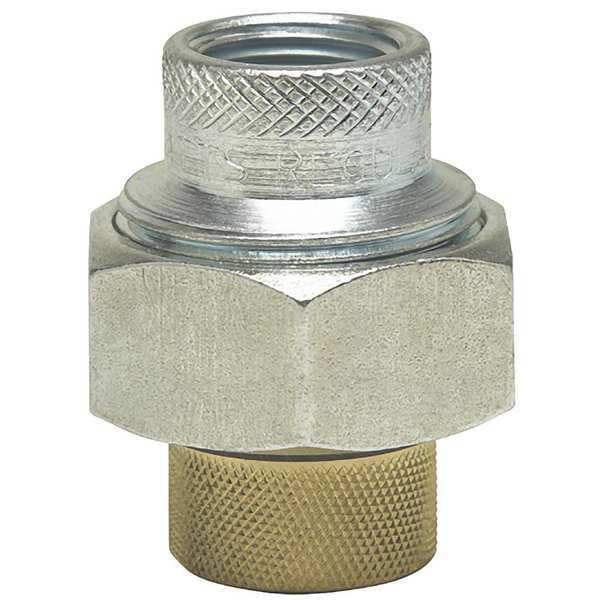

Dielectric Union, 1 In, FIP x FBP, 250 psi

  • Mfr # 1 LF3003

  • Zoro # G4529384

product price:
$
59.79
/ea

Key Features

Pipe Fitting Material
Lead Free Brass, Steel
Fitting Connection Type
FIP x FIP
Pipe Size - Pipe Fitting
1"
Max. Pressure
250 psi
Standards
ANSI B16.39; Federal Specifications for Tensile Strength and Thread End Connections
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
1 LF3003
Zoro #
G4529384
UPC #
098268430318
Country of Origin
United States
Item
Dielectric Union
Pipe Fitting Material
Lead Free Brass, Steel
Fitting Connection Type
FIP x FIP
Max. Pressure
250 psi
Standards
ANSI B16.39; Federal Specifications for Tensile Strength and Thread End Connections
Max. Temp.
180 Degrees F
Gasket Material
Buna-N
Nut Material
Steel
Basic Pipe Fitting Material
Metal
Pipe Fitting Connection Type
FIP x FIP
Insulator Material
Polysulfone
Basic Pipe Fitting Shape
Union
Specific Fitting Shape
Dielectric Union
Fitting Side B Material
Steel
Maximum Operating Pressure
250 psi
Fitting Side A Gender
Female
Fitting Side A Type
Threaded
Application
Gases, Non-Potable Water
Fitting Side B Gender
Female
Fitting Side B Type
Threaded
Color
Silver
Fitting Side A Material
Brass
Low Lead Compliance Level
Compliant
Temp. Range
33 Degrees to 180 Degrees F
Dielectric Union Lead Free Designation
Lead-Free
Side A Thread Type
NPT
Minimum Operating Temperature
33 Degrees F
Fitting Side B Finish/Coating
Brass
Side B Thread Type
NPT
Maximum Operating Temperature
180 Degrees F
Fitting Side A Finish/Coating
Zinc Plated

Description

Dielectric Straight, Brass, Zinc Plated, Steel, Brass, 1 in, Female, Threaded, 1 in, 2 1/2 in, Female, Threaded, Insulator Material Polysulfone, Gasket Material NBR, Nut Material Steel, Class Not Applicable, 250 psi Maximum Operating Pressure, 33 Degrees to 180 Degrees F, 2 1/2 in Overall Length
