This item is Discontinued.

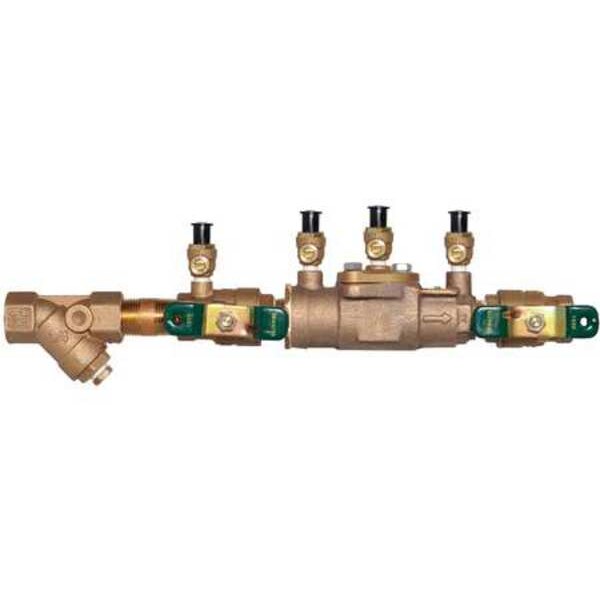

Watts Double Check Valve Assembly, Watts 007 3/4 LF007M3-QT-S

Double Check Valve Assembly, Watts 007 (Discontinued)

  • Mfr # 3/4 LF007M3-QT-S
  • Zoro # G4393566
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
3/4 LF007M3-QT-S
Zoro #
G4393566
UPC #
098268785456
Country of Origin
United States

Dimensions

Width
3-1/16"
Pipe Size
3/4"
Size
3/4"
Length
14-1/2"
Overall Length
14.5 in
Overall Height
6.13 in
Overall Width
3.17 in
Connection Size - Side 1
3/4 in
Check Valve Length
6 1/4 in
Nominal Valve Size
3/4 in
Connection Size - Side 2
3/4 in

Details

Item
Double Check Valve Assembly
Body Material
Lead Free Bronze
Temp. Range
33 Degrees to 180 Degrees F
Series
Watts 007
Standards
ASSE 1015, AWWA C510, CSA B64.5, IAPMO PS31
Max. Temp.
180 Degrees F
Max. Pressure
175 psi
Connection
FNPT
Includes
Freeze Sensor
Valve Model Feature
Quarter-Turn Ball Valve, Wye Strainer
Material of Construction
Bronze
Brand & Series
WATTS LF007
Seat Material
Plastic
Connection Type - Side 1
NPT
Connection Type - Side 2
NPT
For Media
Water
Manufacturer Warranty
1 yr
Handle Type
Tee
Maximum Pressure - Operating
175 psi
Hazard Protection Level
Low Health Hazard
Operating Temperature - Minimum
33 Degrees F
Includes Strainer
Strainer Included
Connection Gender - Side 1
Female
Operating Temperature - Maximum
180 Degrees F
Includes Freeze Sensor
Freeze Sensor Included
Mounting Orientation
Horizontal, Vertical
Backflow Preventer Type
Double Check Assembly (DC)
Connection Gender - Side 2
Female

Description

Double Check Valve Assembly, Series Watts 007, Size 3/4 In., Connection FNPT, Body Material Bronze, Temp. Range 33 Degrees to 180 Degrees F, Max. Temp. 180 Degrees F, Max. Pressure 175 psi, Width 3-7/16 In., Length 14-1/2 In., Standards ASSE 1015, AWWA C510, CSA B64.5, IAPMO PS31
