Shop WATTS

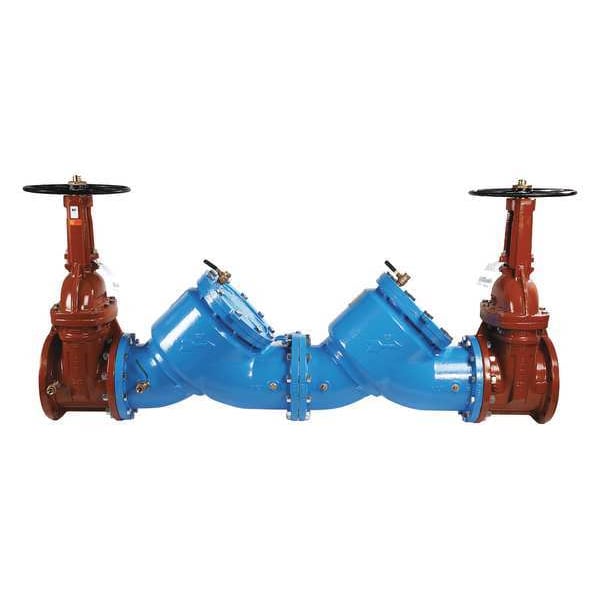

Double Check Valve, W709, 4in, 22-3/4inH

  • Mfr # LF709-OSY

  • Zoro # G2199438

product price:
$
7,647.99
/ea
Additional $215.00 delivery surcharge applies per item.
See details

Key Features

Body Material
Cast Iron
Temp. Range
33 Degrees to 110 Degrees F
Width
12 in
Pipe Size
4"
Max. Pressure
175 psi
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
LF709-OSY
Zoro #
G2199438
UPC #
098268646818
Country of Origin
United States
Item
Double Check Valve Assembly
Body Material
Cast Iron
Temp. Range
33 Degrees to 110 Degrees F
Max. Pressure
175 psi
Features
OSY Shutoffs
Connection
Flanged Joint
Series
Watts 709
Max. Temp.
110 Degrees F
Standards
ASSE 1015, AWWA C510-92, CSA B64.5, cULus Classified, FM, IAPMO PA31, NSF, UPC, USC Manual
Compliance
ASSE 1015, CSA B64.5, FM Approved, Lead Free, UL Classified, UPC, USC
Seat Material
Stainless Steel
Flow
600 gpm
Mounting Orientation
Horizontal, Vertical
Includes Freeze Sensor
No Freeze Sensor
Includes Flow Meter
No Flow Meter
Includes Strainer
No Strainer
Hazard Protection Level
Low Hazard
Shut-Off Valve Included
OSY Gate Valve
Connection Type - Side 2
Flange
For Media
Water
Manufacturer Warranty
1 yr
Connection Type - Side 1
Flange
Operating Temperature - Maximum
110 Degrees F
Backflow Preventer Type
Double Check Assembly (DC)
Operating Temperature - Minimum
33 Degrees F
Maximum Pressure - Operating
175 psi
Valve Series
LF709

Description

Double Check Valve Assembly, Series Watts 709, Size 4 in., Connection Flanged, Body Material Cast Iron, Temp. Range 33 to 110 Degrees F, Max. Temp. 110 Degrees F, Max. Pressure 175 psi, Width 12 in., Length 52-3/8 in., Height 22-3/4 in., Features OSY Shutoffs, Standards AWWA C510-92, IAPMO PA 31, USC Manual for Cross Connection Control 8th Edition, Compliance ASSE 1015, UPC, CSA B64.5, UL Classified, FM Approved, USC, Lead Free
