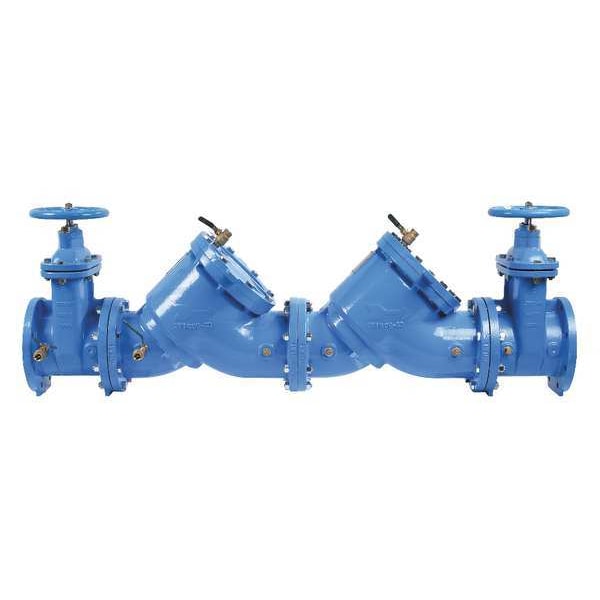

Double Check Valve, Watts709, 4in, Flanged

  • Mfr # LF709-NRS

  • Zoro # G2199499

product price:  $6,362.99
/ea
Additional $325.00 delivery surcharge applies per item.
See details

Key Features

Body Material
Cast Iron
Temp. Range
33 Degrees to 110 Degrees F
Width
12 in
Pipe Size
4"
Connection
Flanged Joint
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
LF709-NRS
Zoro #
G2199499
UPC #
098268646436
Country of Origin
United States

Dimensions

Width
12 in
Pipe Size
4"
Height
12 3/16 in
Length
52 3/8 in
Size
4 in
Overall Height
16.69 in
Check Valve Length
34 1/8 in
Overall Length
52.38 in
Connection Size - Side 2
4 in
Overall Width
12 in
Connection Size - Side 1
4 in
Nominal Valve Size
4 in

Details

Item
Double Check Valve Assembly
Body Material
Cast Iron
Temp. Range
33 Degrees to 110 Degrees F
Connection
Flanged Joint
Max. Pressure
175 psi
Series
Watts 709
Standards
ASSE 1015, AWWA C510-92, CSA B64.5, cULus Classified, IAPMO PA31, NSF, UPC, USC Manual
Features
NRS Shutoffs
Compliance
ASSE 1015, CSA B64.5, FM Approved, Lead Free, UL Classified, UPC, USC
Max. Temp.
110 Degrees F
Flow
600 gpm
Seat Material
Stainless Steel
Operating Temperature - Maximum
110 Degrees F
Hazard Protection Level
Low Health Hazard
Includes Strainer
No Strainer
Includes Freeze Sensor
No Freeze Sensor
Operating Temperature - Minimum
33 Degrees F
Shut-Off Valve Included
NRS Gate Valve
Includes Flow Meter
No Flow Meter
For Media
Water
Mounting Orientation
Horizontal, Vertical
Backflow Preventer Type
Double Check Assembly (DC)
Maximum Pressure - Operating
175 psi
Connection Type - Side 2
Flange
Manufacturer Warranty
1 yr
Connection Type - Side 1
Flange
Valve Series
LF709

Description

Double Check Valve Assembly, Series Watts 709, Size 4 in., Connection Flanged, Body Material Cast Iron, Temp. Range 33 to 110 Degrees F, Max. Temp. 110 Degrees F, Max. Pressure 175 psi, Width 12 in., Length 52-3/8 in., Height 12-3/16 in., Features NRS Shutoffs, Standards AWWA C510-92, IAPMO PA 31, USC Manual for Cross Connection Control 8th Edition, Compliance ASSE 1015, UPC, CSA B64.5, UL Classified, FM Approved, USC, Lead Free
