Shop WATTS

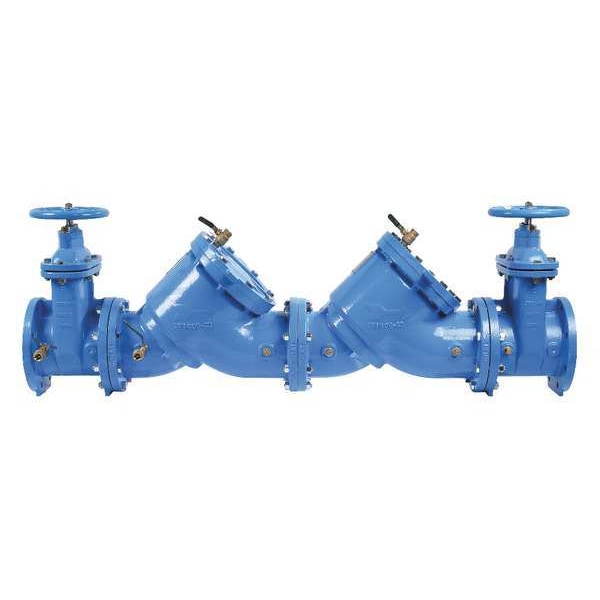

Double Check Valve, Watts709, 6in, 16inH

  • Mfr # LF709-NRS

  • Zoro # G2199480

product price:
$
11,064.99
/ea
Additional $375.00 delivery surcharge applies per item.
See details

Key Features

Body Material
Cast Iron
Temp. Range
33 Degrees to 110 Degrees F
Width
18-1/2"
Pipe Size
6"
Length
62-7/8"
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
LF709-NRS
Zoro #
G2199480
UPC #
098268646849
Country of Origin
United States
Item
Double Check Valve Assembly
Body Material
Cast Iron
Temp. Range
33 Degrees to 110 Degrees F
Max. Temp.
110 Degrees F
Compliance
ASSE 1015, UPC, CSA B64.5, UL Classified, FM Approved, USC, Lead Free
Series
Watts 709
Standards
ASSE 1015, AWWA C510-92, CSA B64.5, cULus Classified, IAPMO PA31, NSF, UPC, USC Manual
Connection
Flanged Joint
Max. Pressure
175 psi
Features
OSY Shutoffs
Flow
1,500 gpm
Seat Material
Stainless Steel
Mounting Orientation
Horizontal, Vertical
For Media
Water
Connection Type - Side 1
Flange
Operating Temperature - Minimum
33 Degrees F
Backflow Preventer Type
Double Check Assembly (DC)
Connection Type - Side 2
Flange
Manufacturer Warranty
1 yr
Includes Flow Meter
No Flow Meter
Hazard Protection Level
Low Hazard
Includes Freeze Sensor
No Freeze Sensor
Includes Strainer
No Strainer
Maximum Pressure - Operating
175 psi
Shut-Off Valve Included
NRS Gate Valve
Operating Temperature - Maximum
110 Degrees F
Valve Series
LF709

Description

Double Check Valve Assembly, Series Watts 709, Size 6 in., Connection Flanged, Body Material Cast Iron, Temp. Range 33 to 110 Degrees F, Max. Temp. 110 Degrees F, Max. Pressure 175 psi, Width 18-1/2 in., Length 62-7/8 in., Height 16 in., Features OSY Shutoffs, Standards AWWA C510-92, IAPMO PA 31, USC Manual for Cross Connection Control 8th Edition, Compliance ASSE 1015, UPC, CSA B64.5, UL Classified, FM Approved, USC, Lead Free
