This item is Discontinued.

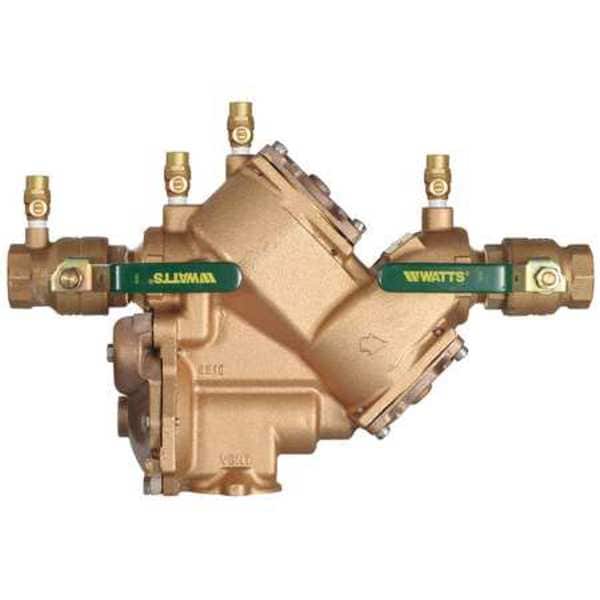

Watts Reduced Pressure Zone Backflow Preventer 1 1/4 LF909M1-QT

Reduced Pressure Zone Backflow Preventer (Discontinued)

  • Mfr # 1 1/4 LF909M1-QT
  • Zoro # G4393514
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
1 1/4 LF909M1-QT
Zoro #
G4393514
UPC #
098268785517
Country of Origin
United States

Dimensions

Width
13 1/2 in
Pipe Size
1-1/4"
Length
23 1/2 in
Size
1 1/4 in
Overall Height
12.75 in
Overall Width
5.25 in
Overall Length
18.5 in
Nominal Valve Size
1 1/4 in
Connection Size - Side 2
1 1/4 in
Connection Size - Side 1
1 1/4 in
Check Valve Length
10 3/8 in

Details

Item
Reduced Pressure Zone Backflow Preventer
Body Material
Lead Free Bronze
Temp. Range
33 Degrees to 140 Degrees F
Connection
FNPT
Standards
ASSE 1013, AWWA C-511-92, CSA B64.4
Series
Watts 909
Max. Pressure
175 psi
Max. Temp.
140 Degrees F
Material of Construction
Bronze
Valve Model Feature
Quarter-Turn Ball Valve
Brand & Series
WATTS LF909 Small
Seat Material
Plastic
Flow
90 gpm
Operating Temperature - Maximum
140 Degrees F
Connection Gender - Side 2
Female
Connection Gender - Side 1
Female
Hazard Protection Level
High Health Hazard
Connection Type - Side 2
NPT
Includes Flood Protection
No Flood Protection
Includes Strainer
No Strainer
Connection Type - Side 1
NPT
Operating Temperature - Minimum
33 Degrees F
For Media
Air, Water
Shut-Off Valve Included
Ball Valve
Includes Flow Meter
No Flow Meter
Handle Type
Lever
Backflow Preventer Type
Reduced Pressure Assembly (RP)
Mounting Orientation
Horizontal, Vertical
Manufacturer Warranty
1 yr
Includes Freeze Sensor
No Freeze Sensor
Maximum Pressure - Operating
175 psi

Description

Backflow Preventer, Reduced Pressure Zone Assembly, Size 1-1/4 In., FNPT Connection, Material of Construction Bronze, Temp. Range (F) 33 to 140, Max. Temp (F) 140, Max. Pressure (PSI) 175, Width (In.) 13-1/2, Length (In.) 23-1/2, Standards ASSE 1013, AWWA C-511-92, CSA B64.4
