This item is Discontinued.

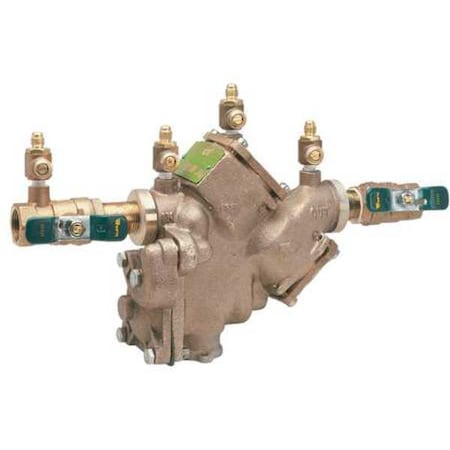

Watts Reduced Pressure Zone Backflow Preventer 1 LF909-QT

Reduced Pressure Zone Backflow Preventer (Discontinued)

  • Mfr # 1 LF909-QT
  • Zoro # G4393471
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
1 LF909-QT
Zoro #
G4393471
UPC #
098268785500
Country of Origin
United States

Dimensions

Width
3-7/8"
Pipe Size
1"
Size
1"
Length
17"
Overall Width
3.88 in
Overall Height
9.88 in
Overall Length
15.38 in
Connection Size - Side 1
1 in
Check Valve Length
7 3/8 in
Nominal Valve Size
1 in
Connection Size - Side 2
1 in

Details

Item
Reduced Pressure Zone Backflow Preventer
Body Material
Lead Free Bronze
Temp. Range
33 Degrees to 140 Degrees F
Max. Temp.
140 Degrees F
Standards
ASSE 1013, AWWA C-511-92, CSA B64.4
Connection
FNPT
Max. Pressure
175 psi
Series
Watts 909
Material of Construction
Bronze
Valve Model Feature
Quarter-Turn Ball Valve
Brand & Series
WATTS LF909 Small
Flow
60 gpm
Seat Material
Plastic
Connection Gender - Side 2
Female
Connection Type - Side 1
NPT
Maximum Pressure - Operating
175 psi
Manufacturer Warranty
1 yr
Shut-Off Valve Included
Ball Valve
Connection Gender - Side 1
Female
Includes Freeze Sensor
No Freeze Sensor
Operating Temperature - Maximum
140 Degrees F
Mounting Orientation
Horizontal, Vertical
Includes Flood Protection
No Flood Protection
Backflow Preventer Type
Reduced Pressure Assembly (RP)
Connection Type - Side 2
NPT
Operating Temperature - Minimum
33 Degrees F
Includes Strainer
No Strainer
Hazard Protection Level
High Health Hazard
Handle Type
Tee
Includes Flow Meter
No Flow Meter
For Media
Air, Water
Valve Series
LF909 Small

Description

Backflow Preventer, Reduced Pressure Zone Assembly, Size 1 In., FNPT Connection, Material of Construction Bronze, Temp. Range (F) 33 to 140, Max. Temp (F) 140, Max. Pressure (PSI) 175, Width (In.) 10-1/4, Length (In.) 17, Standards ASSE 1013, AWWA C-511-92, CSA B64.4
