This item is Discontinued.

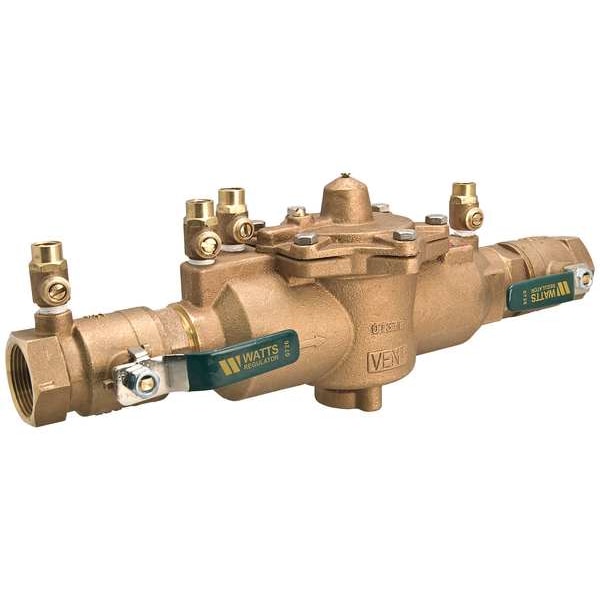

Watts Reduced Pressure Zone Backflow Preventer 2 LF 009QT

Reduced Pressure Zone Backflow Preventer (Discontinued)

  • Mfr # 2 LF 009QT
  • Zoro # G2839112
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
2 LF 009QT
Zoro #
G2839112
UPC #
098268524376
Country of Origin
United States

Dimensions

Width
7-3/4"
Pipe Size
2"
Size
2"
Length
21-3/8"
Overall Length
21.38 in
Overall Height
8.75 in
Overall Width
7.75 in
Connection Size - Side 1
2 in
Nominal Valve Size
2 in
Check Valve Length
13 1/2 in
Connection Size - Side 2
2 in

Details

Item
Reduced Pressure Zone Backflow Preventer
Body Material
Lead Free Cast Copper Silicon Alloy
Temp. Range
33 Degrees to 180 Degrees F
Max. Pressure
175 psi
Max. Temp.
180 Degrees F
Series
Watts 009
Standards
ASSE, AWWA, CSA, IAPMO Foundation for Cross-Connection Control and Hydraulic Research At The University of Southern California
Connection
FNPT
Valve Model Feature
Quarter-Turn Ball Valve
Material of Construction
Lead-Free Brass
Brand & Series
WATTS LF009
Seat Material
Polymer
Shut-Off Valve Included
Ball Valve
Connection Type - Side 2
NPT
Connection Type - Side 1
NPT
Includes Freeze Sensor
No Freeze Sensor
Backflow Preventer Type
Reduced Pressure Assembly (RP)
Operating Temperature - Maximum
180 Degrees F
Number of Test Ports
4
Hazard Protection Level
High Health Hazard
For Media
Water
Includes Flood Protection
No Flood Protection
Manufacturer Warranty
1 yr
Maximum Pressure - Operating
175 psi
Operating Temperature - Minimum
33 Degrees F
Includes Strainer
No Strainer

Description

Reduced Pressure Zone Backflow Preventer
