This item is Discontinued.

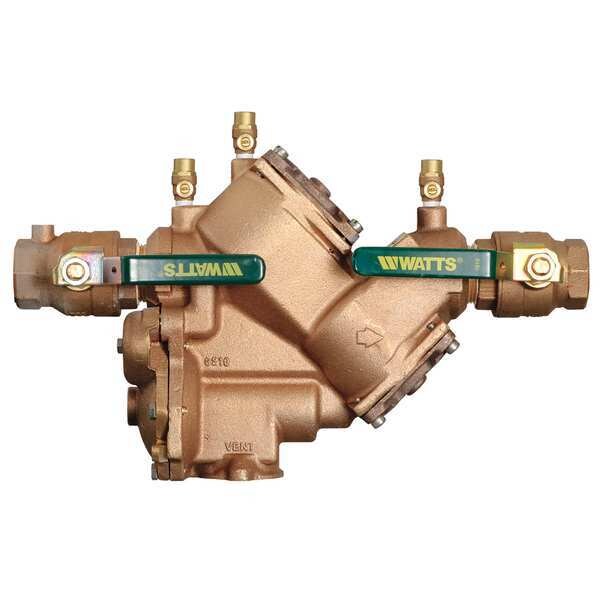

Watts Reduced Pressure Zone Backflow Preventer 2 LF909M1-QT

Reduced Pressure Zone Backflow Preventer (Discontinued)

  • Mfr # 2 LF909M1-QT
  • Zoro # G4393496
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
2 LF909M1-QT
Zoro #
G4393496
UPC #
098268785531
Country of Origin
United States

Dimensions

Width
13 1/2 in
Pipe Size
2"
Length
23 1/2 in
Size
2 in
Overall Height
12.75 in
Overall Length
19.5 in
Overall Width
5.25 in
Nominal Valve Size
2 in
Connection Size - Side 1
2 in
Check Valve Length
10 3/8 in
Connection Size - Side 2
2 in

Details

Item
Reduced Pressure Zone Backflow Preventer
Body Material
Lead Free Bronze
Temp. Range
33 Degrees to 140 Degrees F
Standards
ASSE 1013, AWWA C-511-92, CSA B64.4
Max. Temp.
140 Degrees F
Connection
FNPT
Series
Watts 909
Max. Pressure
175 psi
Brand & Series
WATTS LF909 Small
Material of Construction
Bronze
Valve Model Feature
Quarter-Turn Ball Valve
Maximum Pressure - Operating
175 psi
Includes Flood Protection
No Flood Protection
For Media
Air, Water
Operating Temperature - Minimum
33 Degrees F
Connection Type - Side 2
NPT
Includes Flow Meter
No Flow Meter
Connection Type - Side 1
NPT
Connection Gender - Side 2
Female
Backflow Preventer Type
Reduced Pressure Assembly (RP)
Operating Temperature - Maximum
140 Degrees F
Manufacturer Warranty
1 yr
Flow
188 gpm
Handle Type
Lever
Includes Strainer
No Strainer
Seat Material
Plastic
Includes Freeze Sensor
No Freeze Sensor
Connection Gender - Side 1
Female
Mounting Orientation
Horizontal, Vertical
Shut-Off Valve Included
Ball Valve
Hazard Protection Level
High Health Hazard

Description

Backflow Preventer, Reduced Pressure Zone Assembly, Size 2 In., FNPT Connection, Material of Construction Bronze, Temp. Range (F) 33 to 140, Max. Temp (F) 140, Max. Pressure (PSI) 175, Width (In.) 13-1/2, Length (In.) 23-1/2, Standards ASSE 1013, AWWA C-511-92, CSA B64.4
