This item is Discontinued.

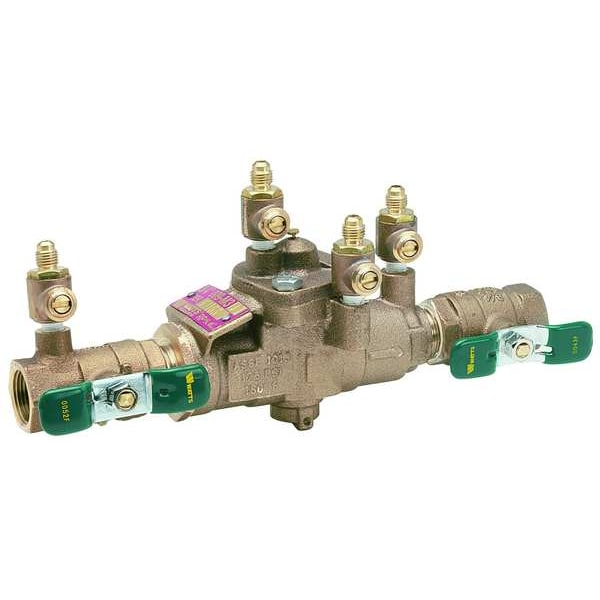

Watts Reduced Pressure Zone Backflow Preventer 3/4 LF 009QT

Reduced Pressure Zone Backflow Preventer (Discontinued)

  • Mfr # 3/4 LF 009QT
  • Zoro # G1596506
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
3/4 LF 009QT
Zoro #
G1596506
UPC #
098268524451
Country of Origin
United States

Dimensions

Width
5 in
Pipe Size
3/4"
Length
10 3/4 in
Size
3/4 in
Overall Height
6.25 in
Overall Width
5 in
Overall Length
10.75 in
Connection Size - Side 1
3/4 in
Connection Size - Side 2
3/4 in
Nominal Valve Size
3/4 in
Check Valve Length
6 3/4 in

Details

Item
Reduced Pressure Zone Backflow Preventer
Body Material
Lead Free Cast Copper Silicon Alloy
Temp. Range
33 Degrees to 180 Degrees F
Max. Temp.
180 Degrees F
Series
Watts 009
Connection
NPT
Standards
ASSE, AWWA, CSA, IAPMO Foundation for Cross-Connection Control and Hydraulic Research At The University of Southern California
Max. Pressure
175 psi
Material of Construction
Lead-Free Brass
Valve Model Feature
Quarter-Turn Ball Valve
Brand & Series
WATTS LF009
Seat Material
Polymer
Number of Test Ports
4
Hazard Protection Level
High Health Hazard
Operating Temperature - Maximum
180 Degrees F
Manufacturer Warranty
1 yr
Backflow Preventer Type
Reduced Pressure Assembly (RP)
Includes Strainer
No Strainer
Includes Flood Protection
No Flood Protection
Shut-Off Valve Included
Ball Valve
Connection Type - Side 1
NPT
Handle Type
Tee
For Media
Water
Connection Type - Side 2
NPT
Operating Temperature - Minimum
33 Degrees F
Includes Freeze Sensor
No Freeze Sensor
Maximum Pressure - Operating
175 psi

Description

Backflow Preventer, Reduced Pressure Zone Assembly, Size 3/4 In, Connection IPS, Material of Construction Lead-Free Brass, Temp Range 33 to 180 F, Max Temp 180 F, Max Pressure 175 PSI, Width 5 In, Length 10 3/4 In, Standards ASSE, AWWA, CSA, IAPMO Foundation for Cross-Connection Control and Hydraulic Research at the University of Southern California., Certified For Use in Potable Water Applications

Restrictions
