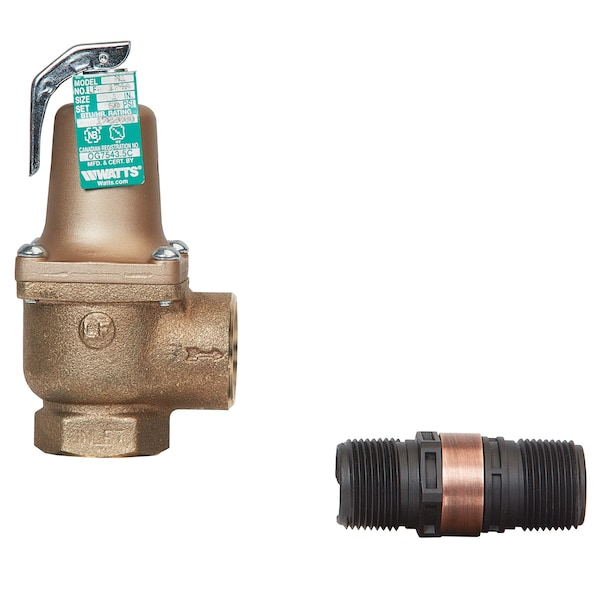

Relief valve

Mfr # 1 LF174A 75 FS
Zoro # G810565826

537.99

Free Shipping & Returns

Key Features

Body Material

Copper Silicon Alloy

Overall Length

3 in

Factory Set Pressure

75 psi

Spring Material

Stainless Steel

Overall Height

5 3/4 in

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: 1 LF174A 75 FS
Zoro #: G810565826
UPC #: 098268574432
Country of Origin: United States

Dimensions

Overall Length: 3 in
Overall Height: 5 3/4 in
Outlet Connection Size: 1 in
Inlet Connection Size: 1 in
Wire Rope Length: 3 in
Length: 3 in

Details

Body Material: Copper Silicon Alloy
Item: Relief Valve
Factory Set Pressure: 75 psi
Spring Material: Stainless Steel
Standards: ASME Code HV
Seat Material: Metal
Test Lever: Test Lever Included
BtuH: 2,055,000 BtuH
Application: Hot Water Space Heating Boiler
ASME Section Code: Section XIII
Product Type: Pressure Relief Valve
Outlet Connection Gender: Female
Operating Temperature - Maximum: 250 Degrees F
Outlet Connection Type: NPTF
Inlet Connection Gender: Female
NSF Certifications for Food and Drinking Water: NSF 372
For Media: Water
Operating Pressure - Maximum: 150 psi
Operating Temperature - Minimum: -40 Degrees F
Operating Pressure - Minimum: 50 psi
Inlet Connection Type: NPTF

Description

Relief Valve, Body Material Copper Silicon Alloy, Factory Set Pressure 75 psi, 2,055,000 BtuH BtuH, Overall Height 5 3/4 in, Application Hot Water Space Heating Boiler, Overall Length 3 in, Seat Material Metal, Spring Material Stainless Steel, Test Lever Test Lever Included, Standards ASME Code HV
