  11. Safety Relief Valve, 1 In, 125 psi, Bronze
This item is Discontinued.

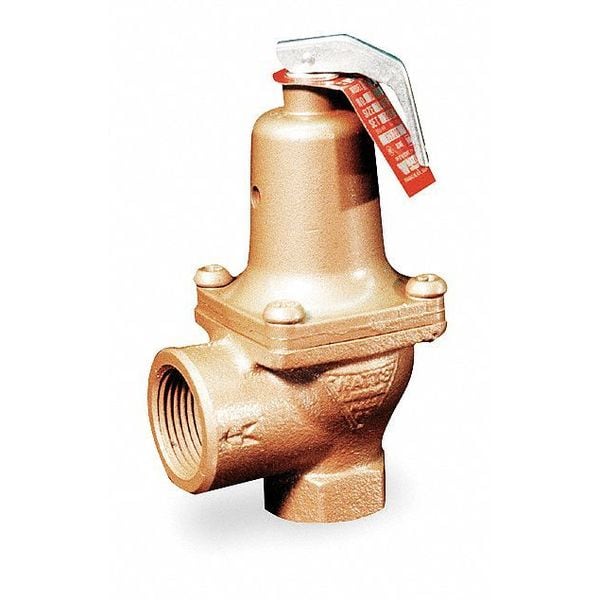

Watts Safety Relief Valve, 1 In, 125 psi, Bronze 1 174A 125

Safety Relief Valve, 1 In, 125 psi, Bronze (Discontinued)

  • Mfr # 1 174A 125
  • Zoro # G1551225
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1 174A 125
Zoro #
G1551225
UPC #
098268861877
Country of Origin
United States

Dimensions

Inlet Size
1"
Outlet Size
1"
Overall Length
3"
Overall Height
5-3/4"
Outlet Connection Size
1 in
Inlet Connection Size
1 in

Details

Body Material
Bronze
Item
Safety Relief Valve
Outlet Type
FNPT
Inlet Type
FNPT
Spring Material
Stainless Steel
Standards
MILV-136-RD, Type III, Rating ASME. NB and HV
Seat Material
Metal
Test Lever
Yes
Factory Set Pressure
125 psi
Disc Material
Nonmetallic
Pressure Range
30 to 150 psi
BtuH
3,215,000
Application
For Pressure Protection of Hot Water Heating Boilers
Temp. Range
0 Degrees to 250 Degrees F
Product Type
Safety Relief Valve
Operating Temperature - Maximum
250 Degrees F
Inlet Connection Type
NPT
Operating Temperature - Minimum
0 Degrees F
Operating Pressure - Maximum
150 psi
Outlet Connection Type
NPT
Operating Pressure - Minimum
30 psi

Description

Safety Relief Valve, Body Material Bronze, Inlet Type FNPT, Outlet Type FNPT, Inlet Size 1 in, Outlet Size 1 in, Factory Set Pressure 125 psi, Pressure Range 30 to 150 psi, 3,215,000 BtuH BtuH, Overall Height 5 3/4 in, Application For Pressure Protection of Hot Water Heating Boilers, Overall Length 3 in, Seat Material Metal, Spring Material Stainless Steel, Temp. Range 0 Degrees to 250 Degrees F, Test Lever Test Lever Included, Standards MILV-136-RD, Type III, Rating ASME. NB and HV

Restrictions

This is a restricted item in the USA. It cannot be used for potable water applications.
