  11. Safety Relief Valve, 3/4In, 125 psi, Bronze
This item is Discontinued.

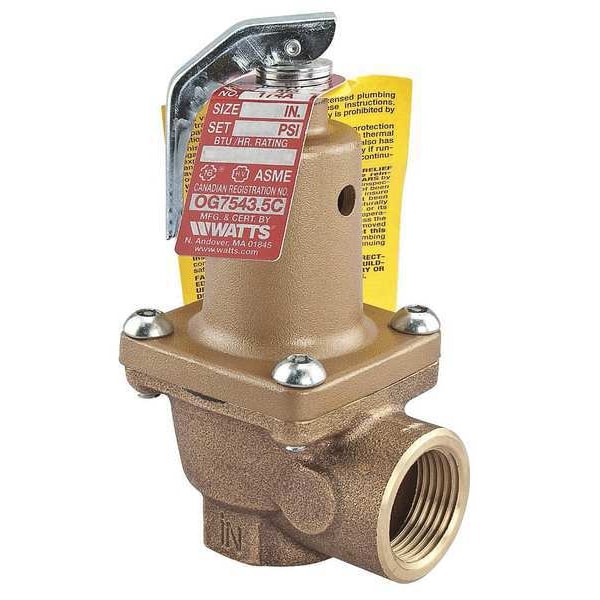

Watts Safety Relief Valve, 3/4In, 125 psi, Bronze 3/4 174A-125

Safety Relief Valve, 3/4In, 125 psi, Bronze (Discontinued)

  • Mfr # 3/4 174A-125
  • Zoro # G4629825
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
3/4 174A-125
Zoro #
G4629825
UPC #
098268818567
Country of Origin
United States

Dimensions

Inlet Size
3/4"
Outlet Size
3/4"
Overall Length
2 1/2 in
Overall Height
5 1/8 in
Inlet Connection Size
3/4 in
Outlet Connection Size
3/4 in

Details

Body Material
Bronze
Item
Safety Relief Valve
Outlet Type
FNPT
Inlet Type
FNPT
Spring Material
Stainless Steel
Disc Material
Silicone
Standards
ASME SectionIV Rated
Test Lever
Yes
Temp. Range
0 Degrees to 250 Degrees F
BtuH
2,070,000
Application
For Pressure Protection of Hot Water Heating Boilers
Factory Set Pressure
125 psi
Pressure Range
30 to 150 psi
Seat Material
Bronze
Product Type
Safety Relief Valve
Operating Pressure - Maximum
150 psi
Operating Pressure - Minimum
30 psi
Inlet Connection Type
NPT
Outlet Connection Type
NPT
Operating Temperature - Maximum
250 Degrees F
Operating Temperature - Minimum
0 Degrees F
ASME Section Code
Section IV

Description

Safety Relief Valve, Body Material Bronze, Inlet Type FNPT, Outlet Type FNPT, Inlet Size 3/4 in, Outlet Size 3/4 in, Factory Set Pressure 125 psi, Pressure Range 30 to 150 psi, 2,070,000 BtuH BtuH, Disc Material Silicone, Overall Height 5 1/8 in, Application For Pressure Protection of Hot Water Heating Boilers, Overall Length 2 1/2 in, Seat Material Bronze, Spring Material Stainless Steel, Temp. Range 0 Degrees to 250 Degrees F, Test Lever Test Lever Included

Restrictions

This is a restricted item in the USA. It cannot be used for potable water applications.
