Shop All Relief Valves
Watts

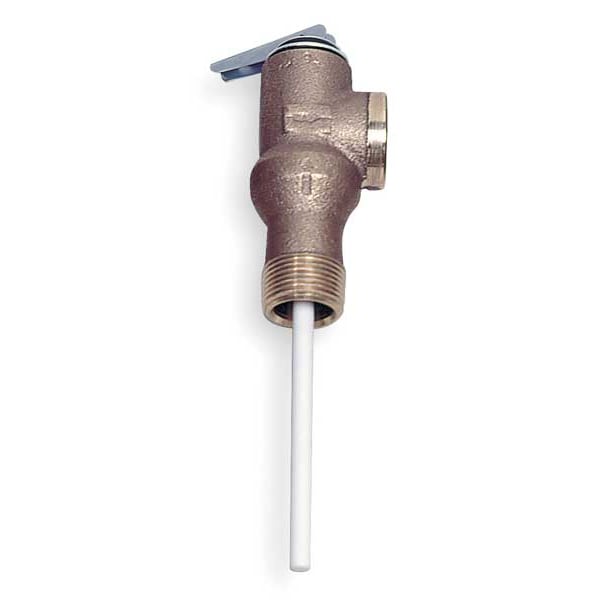

T and P Relief Valve, 3/4 In. Outlet

original price: $24.69
10% off
new price: $22.15
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Inlet Size 3/4"
  • Outlet Size 3/4"
  • Body Material Bronze
  • Outlet Type FNPT
  • Inlet Type MNPT
See all product information

Product Information

  • Brand Watts
  • MFR # L100XL-3
  • Zoro # G0261387
  • UPC #
    098268930818
  • Country of Origin United States
  • Category Relief Valves

Dimensions

Inlet Size 3/4"
Outlet Size 3/4"
Body Height 4 1/4 in
Shank Length Extended
Body Width 1 7/8 in
Thermostat Length 4 in
Overall Width 1-7/8"
Overall Height 4-1/4"
Height 4-1/4"
Width 1-7/8"

Details

Body Material Bronze
Item Temperature and Pressure Relief Valve
Outlet Type FNPT
Inlet Type MNPT
Spring Material Stainless Steel
Standards ASME Rated, CGA Listed, Meet FHA Specifications, MIL-V-13612C, Military Spec, Rated by AGA for Heaters Up to 100000 Btu/HR Input ANSI Z21.22 Standard and UL listed
Factory Set Pressure 150 psi
Max. Temp. 210 Degrees F
Auto Re-Seating No
BtuH 100,000
Type Residential

Description

Temperature and Pressure Relief Valve, Inlet Type MNPT, Outlet Type FNPT, Inlet Size 3/4 in, Outlet Size 3/4 in, Thermostat Length 4 in, Body Height 4 1/4 in, 100,000 BtuH, Factory Set Pressure 150 psi, Max. Temp. 210 Degrees F, Shank Length Extended, Auto Re-Seating No, Body Material Bronze, Spring Material Stainless Steel, Body Width 1 7/8 in
