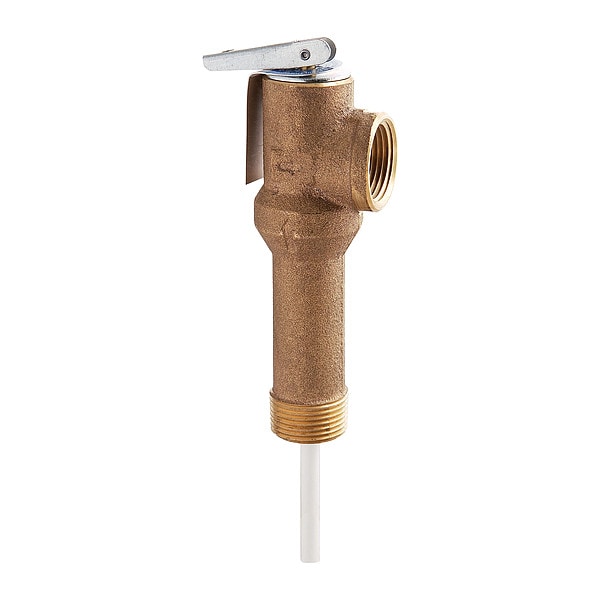

T and P Relief Valve, MNPT x FNPT
- Mfr # LF100XL-4 M7
- Zoro # G0285293
product price:Â
$
33.79
/ea
Key Features
Inlet Size
3/4"
Outlet Size
3/4"
Connection Type
MNPT x FNPT
Body Material
Copper Silicon Alloy
Outlet Type
FNPT
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- LF100XL-4 M7
- Zoro #
- G0285293
- UPC #
- 098268524512
- Country of Origin
- United States
- Connection Type
- MNPT x FNPT
- Body Material
- Copper Silicon Alloy
- Item
- Temperature and Pressure Relief Valve
- Outlet Type
- FNPT
- Inlet Type
- MNPT
- Max. Temp.
- 210 Degrees F
- Standards
- ASME, CSA
- Spring Material
- Stainless Steel
- Auto Re-Seating
- Yes
- Factory Set Pressure
- 150 psi
- BtuH
- 105,000 BtuH
- Application
- Water Heaters
- Type
- Self-Closing
- Preset Temperature
- 210 Degrees F
- Operating Temperature - Maximum
- 210 Degrees F
- Operating Pressure - Maximum
- 113 psi
- Inlet Connection Type
- NPT
- Outlet Connection Type
- NPT
- Inlet Connection Gender
- Male
- Outlet Connection Gender
- Female
- For Media
- Hot Water
Dimensions
- Inlet Size
- 3/4"
- Outlet Size
- 3/4"
- Body Width
- 1-7/8"
- Thermostat Length
- 2 in
- Body Height
- 3 3/16 in
- Shank Length
- Extended
- Overall Width
- 1-7/8"
- Overall Height
- 4-3/4"
- Height
- 4-3/4"
- Width
- 1-7/8"
- Outlet Connection Size
- 3/4 in
- Inlet Connection Size
- 3/4 in
Description
Temperature and Pressure Relief Valve, Inlet Type MNPT, Outlet Type FNPT, Inlet Size 3/4 in, Outlet Size 3/4 in, Thermostat Length 2 in, Body Height 3 3/16 in, 105,000 BtuH BtuH, Factory Set Pressure 150 psi, Max. Temp. 210 Degrees F, Shank Length Extended, Auto Re-Seating Yes, Body Material Copper Silicon Alloy, Spring Material Stainless Steel, Body Width 1 7/8 in, Standards ASME, CSA
