Shop WATTS

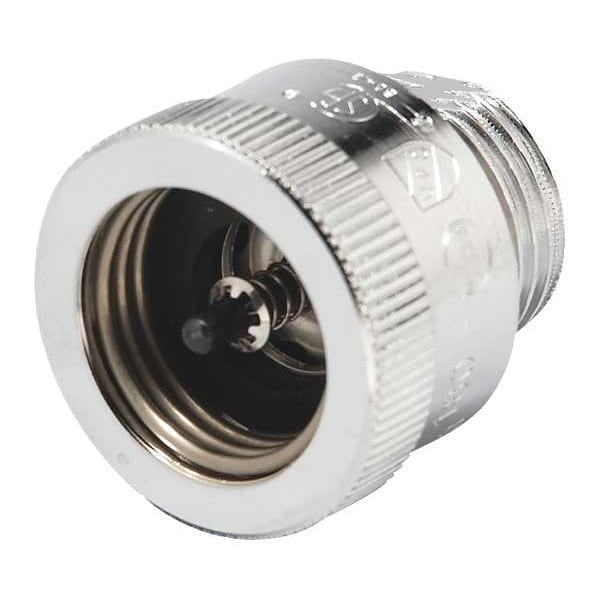

Vacuum Breaker, 1-1/2inH, Tamper-Proof

  • Mfr # LF8AC

  • Zoro # G0469187

product price:
$
68.19
/ea

Key Features

Body Material
Lead Free Chrome Copper Silicon Alloy
Size
3/4"
Connection Type
FNPT x MNPT
Max. Pressure
125 psi
Seal
Rubber
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LF8AC
Zoro #
G0469187
UPC #
098268434798
Country of Origin
Mexico

Dimensions

Size
3/4"
Height
1 1/2 in
Width
1 1/2 in
Pipe Size
3/4"
Connection Size - Side 2
3/4 in
Overall Length
1.5 in
Connection Size - Side 1
3/4 in
Nominal Valve Size
3/4 in
Wire Rope Length
1.5 in
Length
1.5 in

Details

Body Material
Lead Free Chrome Copper Silicon Alloy
Connection Type
FNPT x MNPT
Max. Pressure
125 psi
Seal
Rubber
Item
Atmospheric Vacuum Breaker
Compliance
ANSI A112.1.3, ASSE 1011, Lead Free
Material of Construction
Lead Free Chrome Copper Silicon Alloy
Temp. Range
33 Degrees to 180 Degrees F
Standards
ANSI A112.1.3 (ASSE 1011), ASSE 1001, cCSAus B64.2, IAPMO, NSF/ANSI 372, UPC
Connection Gender - Side 2
Male
Includes Freeze Protection
Freeze Protection Included
Hazard Protection Level
High Hazard
Seal Material
Rubber
Connection Gender - Side 1
Female
Hose Bib Securing Mechanism
Non-Removable
Includes Atmospheric Vent
No Atmospheric Vent
Body Finish
Chrome-Plated
Connection Type - Side 2
GHT
Connection Type - Side 1
GHT
Vacuum Breaker Style
Hose Bib Vacuum Breaker
Manufacturer Warranty
1 yr
Operating Temperature - Maximum
180 Degrees F
Operating Temperature - Minimum
33 Degrees F
Maximum Pressure - Operating
125 psi
For Media
Water
Includes Drain Capability
Manual Drain
Flow
10 gpm
Valve Series
LF8

Description

Atmospheric Vacuum Breaker, Size 3/4 in, Connection Type FGHT x MGHT, Material of Construction Lead Free Chrome Copper Silicon Alloy, Seal Rubber, Max. Pressure 125 psi, Temp. Range 33 Degrees to 180 Degrees F, Height 1 1/2 in, Width 1 1/2 in, Standards ANSI A112.1.3 (ASSE 1011), ASSE 1001, cCSAus B64.2, IAPMO, NSF/ANSI 372, UPC, Compliance ANSI A112.1.3, ASSE 1011, Lead Free

Restrictions
