  11. Water Press Reducing Valve, 1-1/4in, 30psi

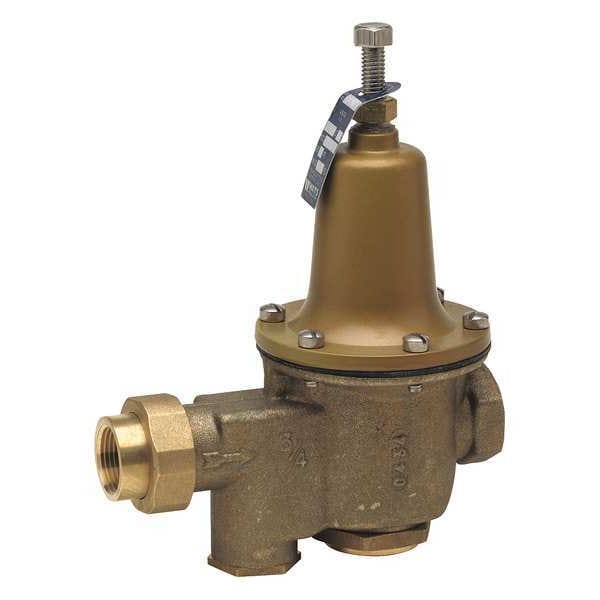

Watts Water Press Reducing Valve, 1-1/4in, 30psi 1-1/4 LFU5B-Z3-LP - main

Water Press Reducing Valve, 1-1/4in, 30psi

  • Mfr # 1-1/4 LFU5B-Z3-LP

  • Zoro # G0090277

product price: $2,704.99
/ea
Free Shipping & Returns

Key Features

Pipe Size
1 1/4"
Inlet Size
1 1/4"
Connection Type
FNPT Union x FNPT Union
Body Material
Lead Free Cast Copper Silicon Alloy
Max. Pressure
300 psi
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1-1/4 LFU5B-Z3-LP
Zoro #
G0090277
UPC #
098268328677
Country of Origin
United States

Dimensions

Pipe Size
1 1/4"
Inlet Size
1 1/4"
Height
9 3/8 in
Length
9 7/16 in
Overall Height
8 3/8 in
Inlet Connection Size
1 1/4 in
Overall Width
7 15/16 in
Outlet Connection Size
1 1/4 in

Details

Connection Type
FNPT Union x FNPT Union
Body Material
Lead Free Cast Copper Silicon Alloy
Max. Pressure
300 psi
Max. Temp.
160 Degrees F
Item
Water Pressure Reducing Valve
Strainer
Yes
Preset Pressure Settings
30 psi
Material
Lead Free Copper Silicon Alloy
Valve Type
Low Pressure
Application
Water
Standards
ANSI A112.26.2, ASSE 1003, CSA B356, IAPMO, Southern Standard Plumbing Code
Pressure Adjustment Range
10 to 35 psi
Seat Material
Stainless Steel
Disc Material
EPDM
Factory Set Pressure
50 psi
Port Design
Full Port
Inlet Connection Type
NPT
For Media
Water
Pilot Adjustment - Minimum
10 psi
Pilot Adjustment - Maximum
35 psi
Coating/Lining
NSF Listed Fusion Bonded Epoxy Lining and Coating
Operating Pressure - Maximum
300 psi
NSF Certifications for Food and Drinking Water
NSF 61G
Outlet Connection Type
NPT
Fluid Temperature - Maximum
160 Degrees F
Includes Strainer
Strainer Included

Description

Water Press Reducing Valve,1-1/4in,30psi
