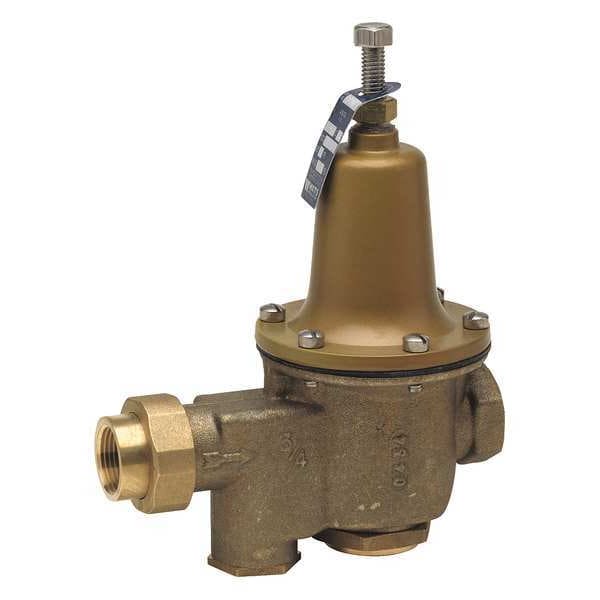

Watts Water Press Reducing Valve, 1-1/4in, 50psi LFU5B-Z3 - main

Water Press Reducing Valve, 1-1/4in, 50psi

  • Mfr # LFU5B-Z3

  • Zoro # G0090286

product price:  $2,439.99
/ea
Free Shipping & Returns

Key Features

Pipe Size
1 1/4"
Inlet Size
1 1/4"
Connection Type
FNPT Union x FNPT Union
Body Material
Lead Free Cast Copper Silicon Alloy
Max. Pressure
300 psi
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LFU5B-Z3
Zoro #
G0090286
UPC #
098268328462
Country of Origin
United States

Dimensions

Pipe Size
1 1/4"
Inlet Size
1 1/4"
Height
8-3/8"
Length
7-15/16"
Overall Height
8 3/8 in
Outlet Connection Size
1 1/4 in
Overall Width
6 5/8 in
Inlet Connection Size
1 1/4 in

Details

Connection Type
FNPT Union x FNPT Union
Body Material
Lead Free Cast Copper Silicon Alloy
Max. Pressure
300 psi
Max. Temp.
160 Degrees F
Item
Water Pressure Reducing Valve
Application
Commercial Use, Residential Use
Standards
ANSI A112.26.2, CSA B356, IAPMO, Southern Standard Plumbing Code
Strainer
Yes
Preset Pressure Settings
50 psi
Material
Lead Free Copper Silicon Alloy
Pressure Adjustment Range
25 to 75 psi
Valve Type
Standard
Factory Set Pressure
50 psi
Disc Material
EPDM
Seat Material
Stainless Steel
Includes Strainer
Strainer Included
Inlet Connection Type
NPT
Pilot Adjustment - Maximum
75 psi
Coating/Lining
NSF Listed Fusion Bonded Epoxy Lining and Coating
Outlet Connection Type
NPT
Pilot Adjustment - Minimum
25 psi
Fluid Temperature - Maximum
160 Degrees F
For Media
Water
Operating Pressure - Maximum
300 psi
NSF Certifications for Food and Drinking Water
NSF 61G
Port Design
Full Port

Description

Water Press Reducing Valve,1-1/4in,50psi
