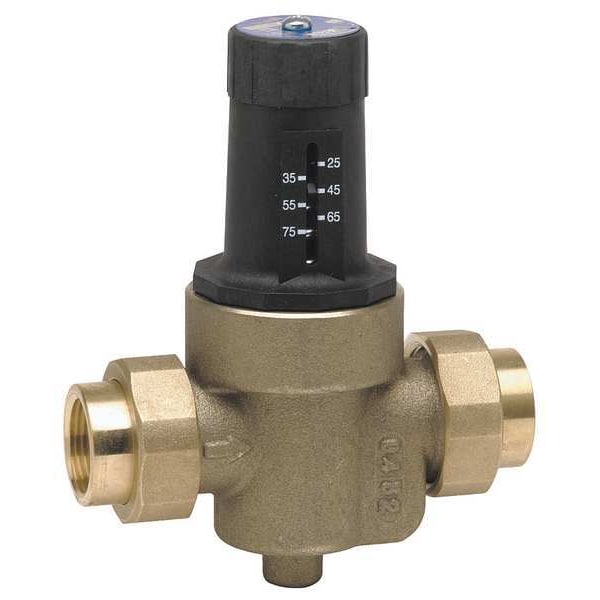

Watts Water Pressure Reducing Valve, 1 in. Pipe 1" LFN45BDU-EZ-M1 - main

Water Pressure Reducing Valve, 1 in. Pipe

  • Mfr # 1" LFN45BDU-EZ-M1

  • Zoro # G6209156

product price:  $297.99
/ea
Free Shipping & Returns

Key Features

Pipe Size
1"
Connection Type
FNPT
Body Material
Lead Free Copper
Max. Pressure
400 psi
Max. Temp.
180 Degrees F
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
1" LFN45BDU-EZ-M1
Zoro #
G6209156
UPC #
098268860450
Country of Origin
United States

Dimensions

Pipe Size
1"
Height
6 1/16 in
Length
5 1/2 in
Overall Height
6 1/4 in
Inlet Connection Size
1 in
Outlet Connection Size
1 in

Details

Connection Type
FNPT
Body Material
Lead Free Copper
Max. Pressure
400 psi
Max. Temp.
180 Degrees F
Item
Water Pressure Reducing Valve
Preset Pressure Settings
50 psi
Valve Type
Standard
Pressure Adjustment Range
25 to 75 psi
Material
Lead Free Copper
Standards
ANSI A112.26.2, ASSE 1003, Certified by NSF to ANSI/NSF Standard 61 Annex G, CSA B356, Listed by IAPMO and City of Los Angeles
Strainer
No
Compliance
Lead Free
Application
Commercial Use, Residential Use
Factory Set Pressure
50 psi
Seat Material
TPE
Disc Material
Elastomer
Inlet Connection Type
NPT
Pilot Adjustment - Maximum
75 psi
NSF Certifications for Food and Drinking Water
NSF 61G
Port Design
Full Port
Outlet Connection Type
NPT
Includes Strainer
Strainer Included
Coating/Lining
NSF Listed Fusion Bonded Epoxy Lining and Coating
Operating Pressure - Maximum
400 psi
Fluid Temperature - Maximum
180 Degrees F
For Media
Water
Pilot Adjustment - Minimum
25 psi

Description

Water Pressure Reducing Valve,1 in. Pipe

Restrictions

This is a restricted item in the USA. It cannot be used for potable water applications.
