Shop WATTS

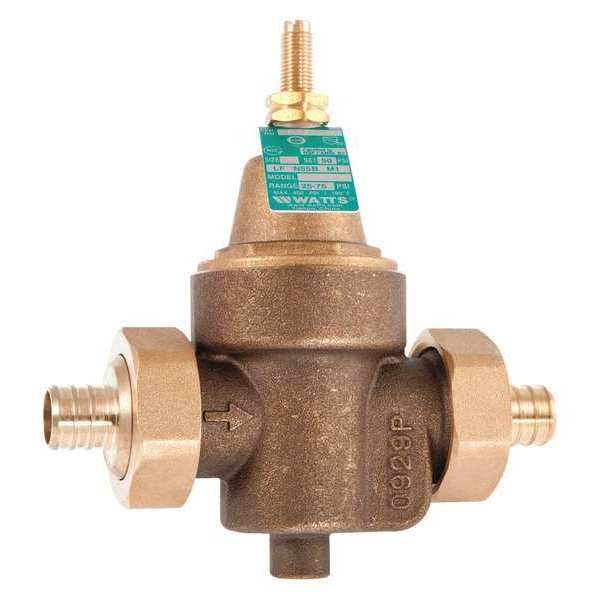

Water Pressure Reducing Valve, 4-1/4 in.L

  • Mfr # 1/2" LFN55BM1-DU-PEX

  • Zoro # G4054045

product price:
$
264.99
/ea
Free Shipping & Returns

Key Features

Pipe Size
1/2 in
Inlet Size
1/2"
Connection Type
Barb
Body Material
Lead Free Copper Silicon Alloy
Max. Pressure
400 psi
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
1/2" LFN55BM1-DU-PEX
Zoro #
G4054045
UPC #
-
Country of Origin
United States
Connection Type
Barb
Body Material
Lead Free Copper Silicon Alloy
Max. Pressure
400 psi
Max. Temp.
180 Degrees F
Item
Water Pressure Reducing Valve
Valve Type
Standard
Preset Pressure Settings
50 psi
Material
Lead Free Copper Silicon Alloy
Pressure Adjustment Range
25 to 75 psi
Strainer
Yes
Application
Commercial Use, Residential Use
Compliance
ASSE Standard 1003, (ANSI A112.26.2), CSA Standard B356, ANSI/NSF Standard 61-8, IAPMO, City of Los Angeles
Standards
ANSI A112.26.2, ASSE 1003, Certified by NSF to ANSI/NSF Standard 61 Annex G, CSA B356, Listed by IAPMO and City of Los Angeles
Disc Material
EPDM
Factory Set Pressure
50 psi
Seat Material
TPE
Pilot Adjustment - Minimum
25 psi
For Media
Water
Fluid Temperature - Maximum
180 Degrees F
Pilot Adjustment - Maximum
75 psi
Port Design
Full Port
Inlet Connection Type
Not Available
NSF Certifications for Food and Drinking Water
NSF 61G
Coating/Lining
NSF Listed Fusion Bonded Epoxy Lining and Coating
Outlet Connection Type
Not Available
Operating Pressure - Maximum
400 psi
Includes Strainer
Strainer Included

Description

Water Pressure Reducing Valve, Valve Type Standard, Strainer Yes, Material Lead Free Copper Silicon Alloy, Pipe Size 1/2 In., Preset Pressure Settings 50 psi, Pressure Adjustment Range 25 to 75 psi, Connection Type Double Union x PEX Union, Height 6-1/4 In., Length 4-1/4 In., Max. Temp. 180 Degrees F, Max. Pressure 400 psi, Compliance ASSE Standard 1003; (ANSI A112.26.2); CSA Standard B356; and listed by IAPMO
