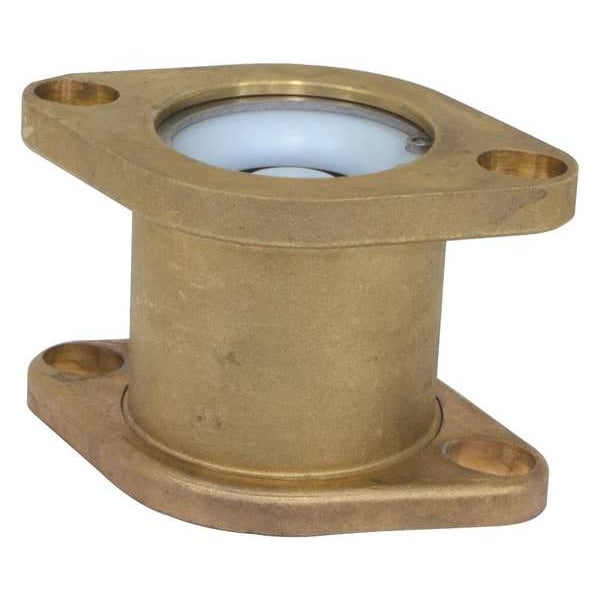

1-1/2" to 2" Flanged Rotating Check Valve

  • Mfr # 13706HV
  • Zoro # G5298097
product price:
$
55.49
/ea

Key Features

Pipe Size
1 1/2" to 2"
Connection Type
Flange x Rotating Flange
Valve Design
Double Flange
Body Material
Brass
Material of Construction
Low Lead Brass
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
13706HV
Zoro #
G5298097
UPC #
18394137066
Country of Origin
China

Dimensions

Pipe Size
1 1/2" to 2"
Width
4-3/16"
Pipe Size (In.)
1-1/2 - 2 Flanged
Size
1 1/2" to 2"
Length
2-9/16"
Compatible Pipe Size
1 1/2 in
Connection Size - Side 1
1 1/2 in

Details

Connection Type
Flange x Rotating Flange
Valve Design
Double Flange
Body Material
Brass
Material of Construction
Low Lead Brass
Material
Low Lead Brass
Max. Pressure
150 psi @ 200 Degrees F
Valve Type
Check
Item
Rotating Flanged Check Valve
Max. Operating Temp.
200 Degrees F
Max. Pressure (PSI)
150 psi
Fits Pump
Any 1-1/2 in to 2 in Standard Flanged Pump
Gasket
EDPM
Includes
Mounting Bolts And One Full Faced Flange Gasket
Standards
ISO 9001
Maximum Operating Pressure
150 psi
Flange Material
Brass
Flange to Pipe Connection Type
Flange x Rotating Flange
Compatible with Brand
Nibco
Compatible with Series
1370 Series
Maximum Ambient Temperature
200 Degrees F
Flange Gasket Material
NBR
Operating Temperature - Maximum
200 Degrees F
Maximum Pressure - Steam
Not Rated

Description

The WEBSTONE 13706HV is a rotating flanged check valve for compatible 1-1/2 in. to 2 in. standard flanged pump connections. It features a double-flange design with flange x rotating flange connections and a low lead brass body. This valve is intended for one-direction flow applications in compatible flanged piping and pump assemblies.

Key Features:

  • Size: 1-1/2 in. to 2 in. flanged connections
  • Connection type: Flange x rotating flange
  • Valve design: Double-flange check valve
  • Body material: Low lead brass
  • Flange material: Brass
  • Flange gasket material: NBR
  • Gasket material: EPDM
  • Pressure rating: 150 psi at 200 degrees F
  • Maximum operating temperature: 200 degrees F
  • For use with compatible 1-1/2 in. to 2 in. standard flanged pumps
  • Includes mounting bolts and one full-face flange gasket
  • Standards: ISO 9001
  • Dimensions: 2-9/16 in. L x 4-3/16 in. W
