Shop WEG

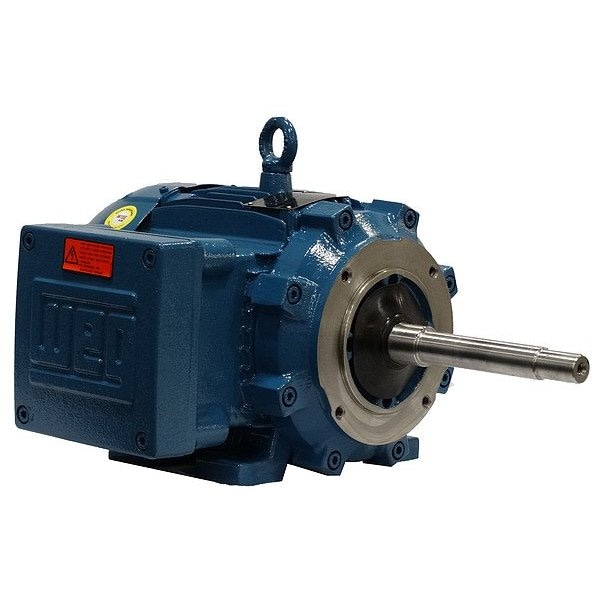

ExplosionProofMotor, Flange;RigidBase

  • Mfr # 00318XT3E182JP

  • Zoro # G122834382

product price:
$
1,895.99
/ea
Free Shipping & Returns

Key Features

Shaft Diameter
7/8 in
Insulation Class
F
Usable @ 200V
Not Usable at 200V
Number of Speeds
1
Ambient Temperature - Maximum
40 Degrees C
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
00318XT3E182JP
Zoro #
G122834382
UPC #
7909323729595
Country of Origin
Brazil

Dimensions

Shaft Diameter
7/8 in
Wire Rope Length
20 7/16 in
Frame Size
182-4TZ
Shaft Length
7 5/16 in
Length Less Shaft
13 1/8 in
Overall Length
20 7/16 in
Length
20 7/16 in

Details

Insulation Class
F
Usable @ 200V
Not Usable at 200V
Number of Speeds
1
Ambient Temperature - Maximum
40 Degrees C
Item
Explosion Proof Motor
Inverter Rating
Inverter Rated
Efficiency Rating
Premium Efficiency (IE3)
Constant Torque Rating
20:1
Usable @ 208V
Not Usable at 208V
Explosion Rating
Explosion Proof
Nominal Efficiency
89.5 %
Motor Design
Three-Phase
Application
Hazardous Location
Hazardous Location Division
Division I
Bearing Type
Ball
Product Type
Explosion Proof Motor
Full Load Current @ 60 Hz
8.0/4.0 A
NEMA Design Class
B
Bearing Protection Type
Shaft Slingers
Temperature Code
T3C
Frame Material
Cast Iron
Nameplate Service Factor @ 60 Hz
1.15
Weight
123 lb
Hazardous Location Class
Class I, Class II
Frequency
60/50 Hz
Phase
Three
Motor Enclosure Type
Totally Enclosed Fan Cooled
Standards
cCSAus, UL Listed
Variable Torque Rating
1000:1
Duty Cycle
Continuous

Description

Explosion Proof Motor, Three Phase, Motor Design Three-Phase, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Thermal Protection T-Stat, Hazardous Location Class Class I, Class II, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Hazardous Location Division Division I
