Fasco

HVAC Motor, 1/50 HP, 1500 rpm, 115V, 3.3

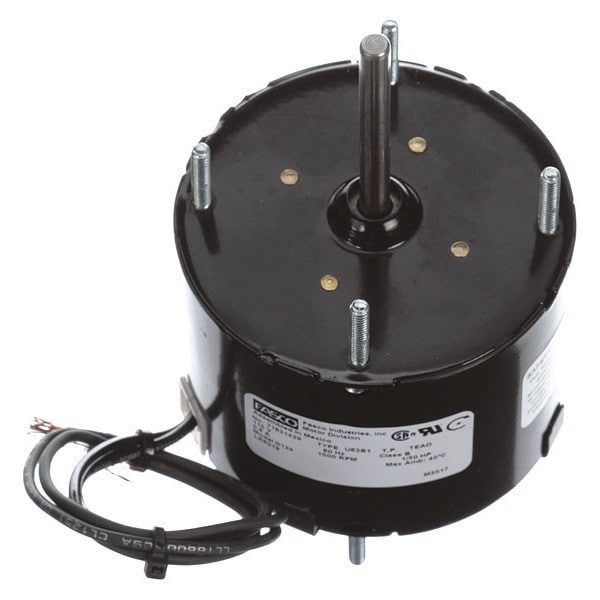

Fasco HVAC Motor, 1/50 HP, 1500 rpm, 115V, 3.3 D124
Tap to zoom
Hover or click to zoom
Feedback Help us improve our product images
$53.69
  • Voltage: 115V AC
  • Nameplate RPM: 1,500 RPM
  • Motor Enclosure Design: Totally Enclosed Air-Over
See full product details
Orders over $75 ship free.
Total: $53.69

Fasco #D124 Specifications

  • Voltage: 115V AC
  • Nameplate RPM: 1,500 RPM
  • Motor Enclosure Design: Totally Enclosed Air-Over
  • HP: 1/50
  • RPM Range: 1,401-1,500
  • Motor Shaft Design: Flat
  • Shaft Dia.: 1/4 in
  • Phase: Single
  • Standards: CSA Certified, UL Recognized
  • Motor Bearings: Sleeve
  • Application: HVAC/R
  • Mounting Pattern: 2-7/8 x 2-7/8
  • Motor Application: HVAC/R
  • Ins. Class: B
  • No. of Speeds: 1
  • Motor Shaft Rotation: CWSE
  • Body Dia.: 3 5/16 in
  • Motor Thermal Protection: Auto
  • Item: Direct Drive Blower Motor
  • Frame: 3.3
  • Duty: Continuous
  • Shaft Length: 2 1/4 in
  • Motor Design: Shaded Pole
  • Stud/Base Mtg. Pattern: 2-7/8 in x 2-7/8 in
  • Max. Ambient Temp.: 40 Degrees C
  • Motor Mounting Type: Stud
  • Motor Sub Application: Direct Drive Fan/Blower
  • Voltage Compatibility: 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
  • Motor Service Factor: 1
  • Mounting Stud Location: 4/Both Ends
  • Number of Shafts: 1
  • Length Less Shaft: 3 in
  • Hz: 60 Hz
  • Full Load Amps: 0.80
  • Capacitor Required: No
  • Motor Frame Material: Steel
  • Lead Length: 12 in
  • Mounting Stud Pattern: 2 7/8 in x 2 7/8 in
  • Motor Mounting Position: All Angle
  • Usable @ 208V: No
  • Usable @ 200V: No
  • Weight: 3 lb
  • Overall Length: 5 1/16 in
  • Bolt Circle Dia.: 2 7/8 in
  • Stud Size: #8-32
  • Mounting Holes: (8) #8-32
  • Country of Origin (subject to change): Mexico
Feedback Help us improve our product information

Description

Direct Drive Blower Motor, Single Phase, Motor Design Shaded Pole, 1/50 HP, Nameplate RPM 1,500, No. of Speeds 1, Voltage 115V AC, Full Load Amps 0.80, 3.3 in Frame, Usable @ 208V No, Usable @ 200V No, Motor Thermal Protection Auto, 60 Hz, Motor Service Factor 1, Ins. Class B, Motor Shaft Rotation CWSE, Max. Ambient Temp. 40 Degrees C, Lead Length 12 in, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Extended Stud, Motor Mounting Position All Angle, Number of Shafts 1
