Shop All Capacitor-Start & Capacitor-Run AC Motors
Weg

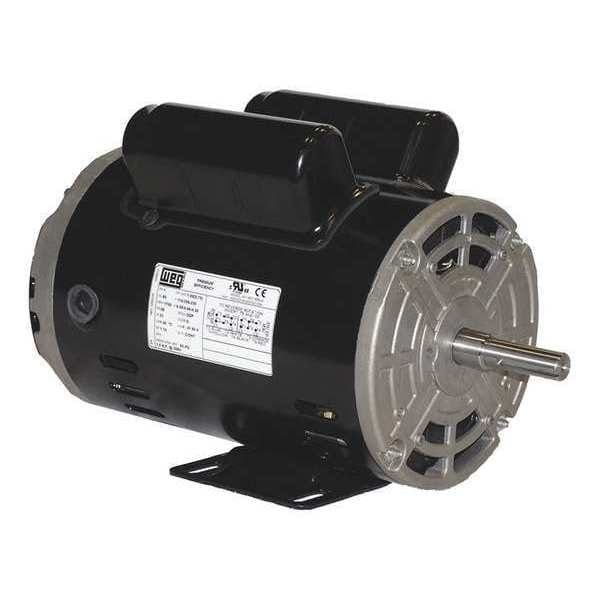

General Purpose Motor, 1 HP, 56 Frame

product price: $391.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Motor Design Capacitor-Start/Run
  • Phase Single
  • HP 1
  • RPM Range 1,701-1,800
  • Voltage Compatibility 115/200-230V AC, 115/208-230V AC, 115V AC, 208-230V AC
See all product information

Product Information

Dimensions

Shaft Length 1 7/8 in
Shaft Dia. 5/8 in
Overall Length 12 11/16 in
Manufacturers Warranty Length 3 yr
Length Less Shaft 10 13/16 in

Details

Motor Design Capacitor-Start/Run
Item General Purpose Motor
Phase Single
HP 1
RPM Range 1,701-1,800
Voltage Compatibility 115/200-230V AC, 115/208-230V AC, 115V AC, 208-230V AC
Voltage 115/208-230V AC
Frame 56
Motor Thermal Protection None
Motor Enclosure Design Open Dripproof
Motor Mounting Type Rigid Base
Full Load Amps 9.00/4.98-4.50 A
Standards CSA, UL
Motor Efficiency Group NEMA Premium Efficient
Inverter Rated No
Duty Continuous
Motor Shaft Rotation CW/CCW
No. of Speeds 1
Nameplate RPM 1,750
Ins. Class F
RPM Group 1701-1800
Motor Shaft Design Keyed
Motor Service Factor 1.15
Motor Frame Material Steel
Motor Mounting Position All Angle
CC Number CC029A
Hz 60 Hz
Nominal Efficiency 82.6 %
Max. Ambient Temp. 104 Degrees F
Motor Application General Application
Motor Bearings Ball
Green Certification or Other Recognition NEMA Premium(R) Rated
NEMA Design None
Usable @ 200V No
Usable @ 208V Yes
Duty Cycle Continuous
Weight 40.3 lb

Description

General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 1 HP, Nameplate RPM 1,750, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 9.00/4.98-4.50 A, 56 Frame, Usable @ 208V Yes, Usable @ 200V No, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, NEMA Design None, Motor Enclosure Design Open Dripproof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base
