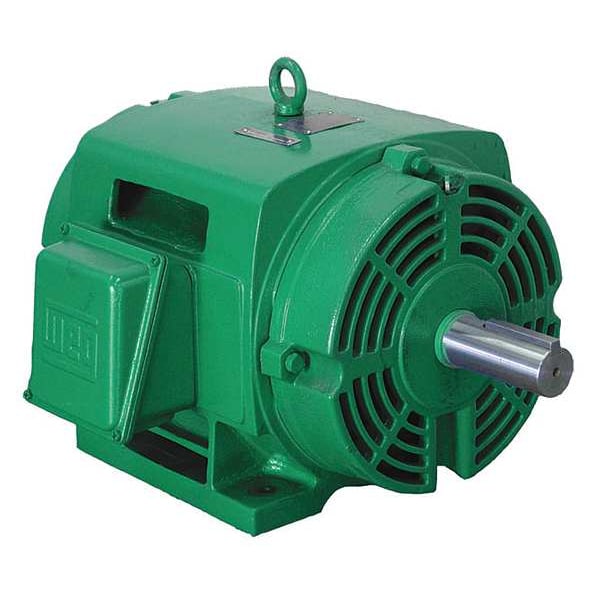

General Purpose Motor, Three Phase, 20 HP, 1,770 Nameplate RPM, 575V AC, 256T Frame
Mfr # 02018OT3H256T
Zoro # G3251911
product price:Â $2,346.99
/ea
Additional $100.00 delivery surcharge applies per item.
Key Features
Motor Design
Three-Phase
Motor Enclosure Design
Open Drip Proof
HP
20
Nameplate RPM
1,770
Frame
256T
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 02018OT3H256T
- Zoro #
- G3251911
- UPC #
- -
- Country of Origin
- Multiple
Dimensions
- Overall Length
- 22 3/8 in
- Shaft Dia.
- 1 5/8 in
- Manufacturers Warranty Length
- 3 yr
- Shaft Length
- 4 in
- Length Less Shaft
- 18 3/8 in
- Shaft Diameter
- 1 5/8 in
- Frame Size
- 256T
- Wire Rope Length
- 22 3/8 in
Description
General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 20 HP, Nameplate RPM 1,770, Frame 256T, Voltage 575V AC, 60 Hz Hz, Three Phase, Full Load Amps 19.8 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 93 Percent, Continuous Duty, 1701-1800, CE, CSA, UL
