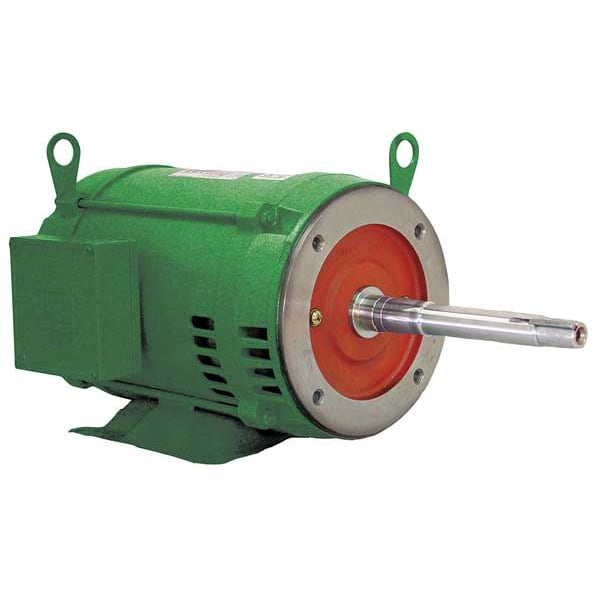

Pump Motor, 3-Ph, 50 HP, 3555,460V, 324JP

  • Mfr # 05036OT3G324JP

  • Zoro # G0423936

product price:  $4,573.99
/ea
Additional $215.00 delivery surcharge applies per item.
See details

Key Features

Motor Design
Three-Phase
HP
50
RPM Range
3,001-3,600
Nameplate RPM
3,600
Voltage
460V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
05036OT3G324JP
Zoro #
G0423936
UPC #
-
Country of Origin
Multiple

Dimensions

Shaft Dia.
1 1/4 in
Overall Length
29 5/16 in
Length Less Shaft
21 3/16 in
Shaft Length
8 1/8 in
Height
18 1/8 in
Manufacturers Warranty Length
3 yr
Body Dia.
18.1 in
Shaft Dia. (In.)
1-1/4
Body Diameter
18.1 in
Frame Size
324JP
Shaft Diameter
1 1/4 in

Details

Item
Close-Coupled Pump Motor
Motor Design
Three-Phase
HP
50
RPM Range
3,001-3,600
Nameplate RPM
3,600
Voltage
460V AC
Frame
324JP
Motor Mounting Type
Face/Base
Motor Service Factor
1.15
Motor Sub Application
Close-Coupled Pump
Standards
CSA (078282-0)
CC Number
CC029A
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
Ins. Class
F
Motor Efficiency Group
NEMA Premium Efficient
Motor Thermal Protection
None
Motor Shaft Rotation
CW/CCW
Hz
60 Hz
Max. Ambient Temp.
40 Degrees C
Phase
Three
Motor Enclosure Design
Open Dripproof
Green Certification or Other Recognition
NEMA Premium(R) Rated
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 220-230/460V AC, 220/460V AC, 230/460/796V AC, 230/460V AC, 440-460V AC, 460/796V AC, 460V AC
Inverter Rated
Inverter Rated
Frame Material
Cast Iron
Motor Bearings
Ball
Motor Application
Pump
Duty
Continuous
Motor Frame Material
Cast Iron
Motor Shaft Design
JP Threaded
Nominal Efficiency
93.6 %
Full Load Amps
59.1 A
Shaft Material
Carbon Steel
Motor Mounting Position
Horizontal
Usable @ 208V
Not Usable at 208V
Service Factor @ 50Hz
1.15
HP @ 50Hz
40, 50
No. of Speeds
1
RPM @ 50Hz
2,960
NEMA Design
B
Weight
491 lb
Voltage @ 50Hz
380/400/415
Conduit Box Position
F1
Conduit Box Location
Exterior
Inverter Rating
1000:1
Duty Cycle
Continuous
Usable @ 200V
Not Usable at 200V
Regreasable Bearings
Regreasable Bearings
Application
Pump
Shaft Type
JP Threaded
Nameplate Service Factor @ 60 Hz
1.15
Ambient Temperature - Maximum
40 Degrees C
Full Load Current @ 60 Hz
59.1 A
Nameplate Voltage @ 50 Hz
380/400/415V AC
Motor Enclosure Type
Open Drip Proof
Manufacturers Warranty
3 yr
Bearing Lubrication Type
Regreasable Bearings
Nameplate Service Factor @ 50 Hz
1.15
Shaft Design
Threaded
NEMA Design Class
B
Shaft Thread Type
JP
Nameplate RPM @ 50 Hz
2,960 RPM
Includes Low Temperature Monitor
Low Temperature Monitor Not Included
Number of Speeds
1
Efficiency Rating
Premium Efficiency (IE3)
Number of Wires
9
Frequency
60 Hz
Insulation Class
F
Product Type
Pump Motor
Bearing Type
Ball
Mounting Position
Horizontal
Series
W40 ODP

Description

Close-Coupled Pump Motor, Body Dia. 18.1 in, CC Number CC029A, Conduit Box Location Exterior, Conduit Box Position F1, Duty Cycle Continuous, Frame 324JP, Hz 60 Hz, Full Load Amps 59.1, Height 18 1/8 in, HP 50, HP @ 50Hz 40, 50, Ins. Class F, Inverter Rated Inverter Rated, Inverter Rating 1000:1, Length Less Shaft 21 3/16 in, Manufacturers Warranty Length 3 yr, Max. Ambient Temp. 40 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design Three-Phase
