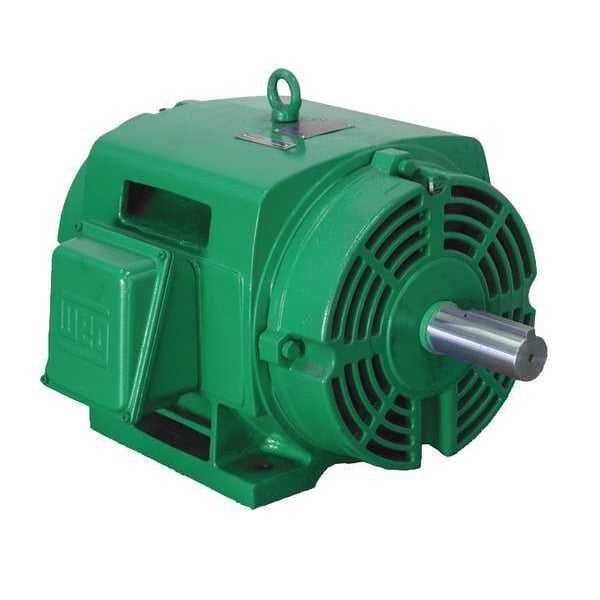

Weg Three-Phase General Purpose Motor, 30 HP, 286T Frame, 230/460V AC Voltage, 1,770 Nameplate RPM 03018OT3E286T-W40 - main

Three-Phase General Purpose Motor, 30 HP, 286T Frame, 230/460V AC Voltage, 1,770 Nameplate RPM

  • Mfr # 03018OT3E286T-W40

  • Zoro # G1969721

product price:  $2,251.70
/ea
Additional $190.00 delivery surcharge applies per item.
See details

Key Features

HP
30
Nameplate RPM
1,770
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
69.8/34.9 A
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
03018OT3E286T-W40
Zoro #
G1969721
UPC #
-
Country of Origin
Multiple

Dimensions

Length Less Shaft
20 1/16 in
Overall Length
24 11/16 in
Shaft Dia.
1 7/8 in
Shaft Length
4 5/8 in
Manufacturers Warranty Length
3 yr
Frame Size
286T
Shaft Diameter
1 7/8 in

Details

Item
General Purpose Motor
HP
30
Nameplate RPM
1,770
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
69.8/34.9 A
Frame
286T
Motor Bearings
Ball
Motor Service Factor
1.25
Motor Design
Three-Phase
Motor Enclosure Design
Open Drip Proof
RPM Range
1701-1800
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Cast Iron
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Nominal Efficiency
94.1 %
Standards
CSA (LR38324), UL (E104590)
CC Number
CC029A
Footnotes
3,17
Green Certification or Other Recognition
NEMA Premium(R) Rated
Motor Thermal Protection
None
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
Voltage @ 50Hz
380, 400, 415
Duty Cycle
Continuous
Usable @ 208V
Usable at 208V
Usable @ 200V
Not Usable at 200V
Inverter Rated
Yes
Weight
397 lb
Service Factor @ 50Hz
1
NEMA Design
B
RPM @ 50Hz
1465/1470 rpm
HP @ 50Hz
25 hp
Full Load Amps @ 50Hz
34.3, 34.7, 35.7 A
Removable Base
Regreasable
Inverter Rating
Inverter Rated
Nameplate Service Factor @ 60 Hz
1.25
Bearing Lubrication Type
Regreasable
Full Load Current @ 60 Hz
69.8/34.9 A
Sub Application
Air Compressor, Fan/Blower
NEMA Design Class
B
Nameplate Voltage @ 50 Hz
380V AC, 460V AC
Number of Speeds
1
Full Load Current @ 50 Hz
34.3, 34.7, 35.7 A
Nameplate Horsepower @ 50 Hz
25 hp
Bearing Type
Ball
Application
General Purpose
Manufacturers Warranty
3 yr
Motor Enclosure Type
Open Drip Proof
Frequency
60 Hz
Efficiency Rating
NEMA Premium Efficiency
Product Type
General Purpose Motor
Nameplate RPM @ 50 Hz
1,785/1,475 RPM
Ambient Temperature - Maximum
40 Degrees C
Insulation Class
F
Nameplate Service Factor @ 50 Hz
1
Shaft Design
Keyed

Description

General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 30 HP, Nameplate RPM 1,770, Frame 286T, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 69.8/34.9 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.25, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 94.1 Percent, Continuous Duty, 1701-1800, CSA (LR38324), UL (E104590)
