  11. Multi-Conductor Cable, 16 AWG, 2 C, Black, PVC, Stranded, 300V AC, Indoor, 1000 ft

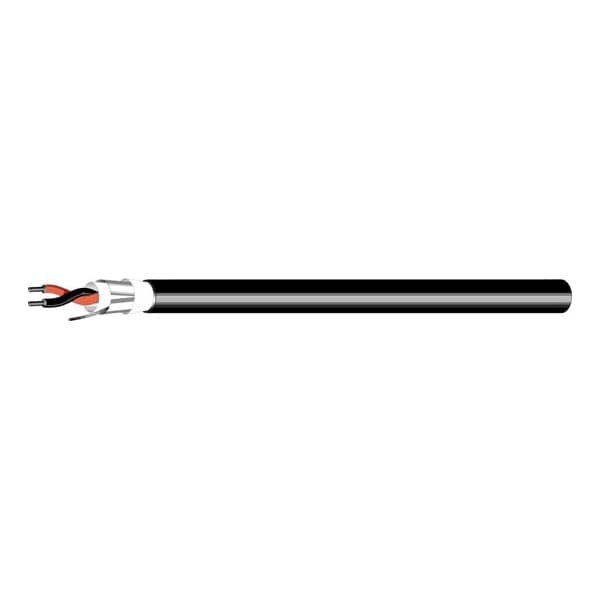

West Penn Wire Multi-Conductor Cable, 16 AWG, 2 C, Black, PVC, Stranded, 300V AC, Indoor, 1000 ft AQ294BK1000 - main

Multi-Conductor Cable, 16 AWG, 2 C, Black, PVC, Stranded, 300V AC, Indoor, 1000 ft

  • Mfr # AQ294BK1000

  • Zoro # G1145007

product price: $1.55
/ea
Sold in multiples of 25 for $38.75

Key Features

Wire Size
16 AWG
Conductor Design
Stranded
Jacket Material
PVC
Jacket Color
Black
Length
1000 ft
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
AQ294BK1000
Zoro #
G1145007
UPC #
-
Country of Origin
Unknown

Dimensions

Wire Size
16 AWG
Length
1000 ft
Outside Dia.
0.328 in
Bend Radius
2.952 in

Details

Item
Multi-Conductor Cable
Number of Conductors
2
Conductor Design
Stranded
Jacket Material
PVC
Jacket Color
Black
Location
Indoor
Voltage
300V AC
Conductor Material
Copper
Standards
UL1685 Listed
Shielding Material
Aluminum Foil
Stranding
7 x 24
Insulated / Uninsulated
Insulated
Features
Stranded, Bendable
Insulation Color
Black, Red
NEC Article and Type
CL3, FPL, PLTC
Temp. Rating
60°C
Shielded
Shielded
Insulation Material
PVC/Nylon
Product Line
Aquaseal
Connector Type on First End
Bare Wire
Connector Type on Second End
Bare Wire
Device Supported
Fire Alarm, Security Device
Plenum
General Purpose
NEC Rating
NEC FPL + PLTC
Construction
Overall Shield & Drain
