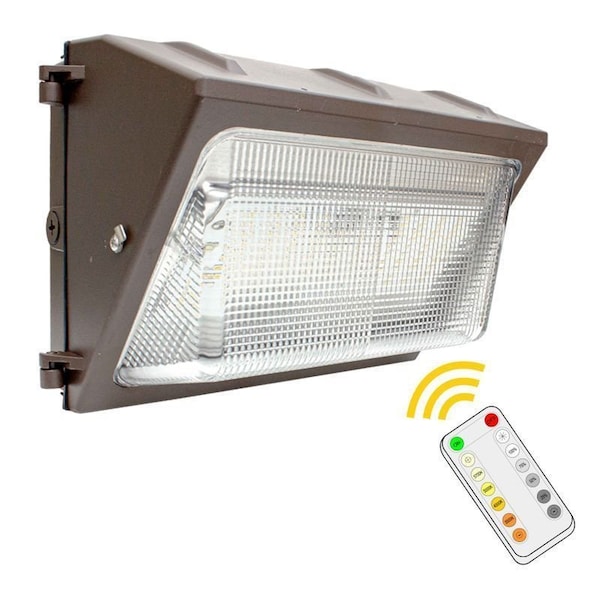

LED TUNABLE NON-CUTOFF WALL PACKS (POWER & COLOR TEMP. TUNABLE), 80W Max, 3000K-5700K, Dark Bronze

  • Mfr # WMX-MCTP-D

  • Zoro # G924886381

product price:
$
174.99
/ea
Free Shipping & Returns

Key Features

IP Rating
IP54
Fixture Wattage
80W Max
Lumens
9000LM Max
Width
9.29 in
Dimmable
0~10V Dimmable
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
WMX-MCTP-D
Zoro #
G924886381
UPC #
845060052596
Country of Origin
China

Dimensions

Width
9.29 in
Height
7.46 in
Length
15.06 in

Details

IP Rating
IP54
Fixture Wattage
80W Max
Lumens
9000LM Max
Dimmable
0~10V Dimmable
Lens Type
Prismatic borosilicate glass lens
Standards
UL
Rated Life
70,000hr
Power Factor
0.95
Housing Material
Die-Cast Aluminum With Powder Coat Finish
Voltage
120-277V
Weight
9.25 lb
Operating Temp. Range
-4°F to 104°F
Lighting Technology
Lumileds LEDs
CRI
>80
BUG Rating
B3-U4-G4
Item
LED Tunable Non-Cutoff Wall Packs (Power & Color Temp. Tunable)
Finish
Dark Bronze
Color Temperature
3000K~5700K

Description

The Westgate WMX-MCTP-D is a LED tunable non-cutoff wall packs (power & color temp. tunable). It delivers 9000LM Max of 3000K-5700K light at 80W Max. Operates on 120-277V input power. Constructed of die-cast aluminum with powder coat finish in a dark bronze finish. Dimming: 0-10V Dimmable. Key specifications: CRI >80, power factor 0.95, THD <20%, operating temperature -4 DegF to 104 DegF, 70,000hr rated life, IP54 ingress protection, BUG rating B3-U4-G4. Light source: Lumileds LEDs. Lens: Prismatic borosilicate glass lens. Certifications: UL.
