21pc. HSS 135 Degrees Drill Bit Set
Mfr # 401J90
Zoro # G3379043
product price:Â $61.59
/eaKey Features
Number of Pieces
21
Cutting Direction
Right Hand
Drill Bit Point Angle
135 Degrees
Drill Bit Material
High Speed Steel
Includes
1/16, 1/4, 1/8, 11/32, 11/64, 13/64, 15/64, 17/64, 19/64, 21/64, 23/64, 3/16, 3/32, 3/8, 5/16, 5/32, 5/64, 7/32, 7/64, 9/32, 9/64, Metal Drill Index Case
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 401J90
- Zoro #
- G3379043
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Sizes Included
- 1/16", 5/64", 3/32", 7/64", 1/8", 9/64", 5/32", 11/64", 3/16", 13/64", 7/32", 15/64", 1/4", 17/64", 9/32", 19/64", 5/16", 21/64", 11/32", 23/64", 3/8"
- Drill Bit Size
- 1/16 in to 3/8 in by 64ths
- Shank Dia.
- 1/6 in
- Drill Bit Dimension Type
- Fractional Inch
- Depth x Dia. Ratio
- 5xD
- Drill Bit Sizes Included
- 1/16 in, 1/4 in, 1/8 in, 11/32 in, 11/64 in, 13/64 in, 15/64 in, 17/64 in, 19/64 in, 21/64 in, 23/64 in, 3/16 in, 3/32 in, 3/8 in, 5/16 in, 5/32 in, 5/64 in, 7/32 in, 7/64 in, 9/32 in, 9/64 in
- Smallest Drill Bit Size
- 1/16 in
- Drill Length Class
- Jobber-Length
- Largest Drill Bit Size
- 3/8 in
- Depth:Dia. Ratio
- 5xD
- Overall Length
- 1 7/8 in, 2 in, 2 1/4 in, 2 5/8 in, 2 3/4 in, 2 7/8 in, 3 1/8 in, 3 1/4 in, 3 1/2 in, 3 5/8 in, 3 3/4 in, 3 7/8 in, 4 in
- Drill Diameter Tolerance
- +0.0000 in / -0.0005 in, +0.0000 in / -0.0010 in
- Wire Rope Length
- 1 7/8 in, 2 in, 2 1/4 in, 2 5/8 in, 2 3/4 in, 2 7/8 in, 3 1/8 in, 3 1/4 in, 3 1/2 in, 3 5/8 in, 3 3/4 in, 3 7/8 in, 4 in
Description

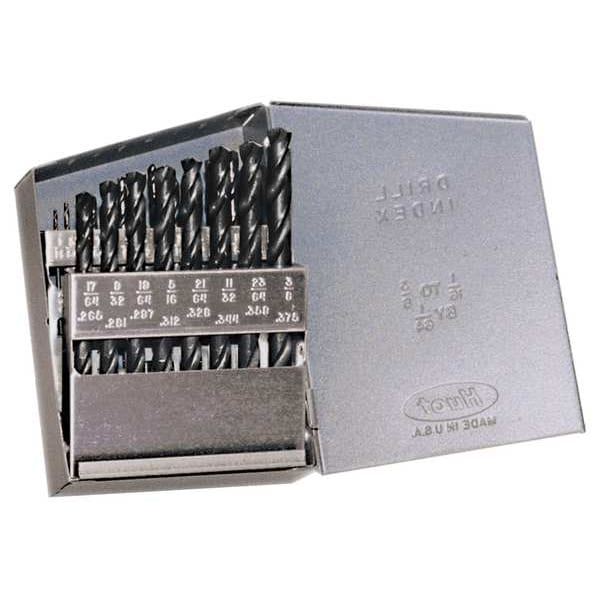

The WESTWARD 401J90 is a jobber-length fractional inch drill bit set consisting of 21 pieces, sized from 1/16 inch up to 3/8 inch by 64ths. Made from general-purpose high speed steel, the set is intended for drilling stainless steel and steel materials. The drill bits have a split point with a 135-degree point angle and a right-hand cutting direction. The set includes a metal drill index case for storage and organization.
Key Features:
- Number of drill bits: 21, ranging from 1/16" to 3/8" diameter
- Jobber-length overall sizes from 1 7/8" to 4"
- High speed steel material with black and gold finish
- Split point type with 135-degree point angle and standard web thinning
- Two-flute spiral design, right-hand spiral and thread direction
- Straight shank with 1/6" diameter
- Conforms to applicable ASME standards (see product specifications for the specific ASME standard and applicable test/criteria)
- Drill diameter tolerance: +0.0000 in / -0.0005 in to -0.0010 in
