Jobber Drill Set, 3/8 Shank, 15 PC, HSS
Mfr # 5UDP3
Zoro # G2536791
Key Features
Specifications
Product Information
- MFR #
- 5UDP3
- Zoro #
- G2536791
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Sizes Included
- 1/16", 3/32", 1/8", 5/32", 3/16", 7/32", 1/4", 9/32", 5/16", 11/32", 3/8", 13/32", 7/16", 15/32", 1/2"
- Drill Bit Size
- 1/16 in to 1/2 in by 32nds
- Drill Bit Dimension Type
- Fractional Inch
- Shank Dia.
- 1/6 in
- Depth x Dia. Ratio
- 4xD
- Largest Drill Bit Size
- 1/2 in
- Drill Length Class
- Jobber-Length
- Drill Bit Sizes Included
- 1/16 in, 1/2 in, 1/4 in, 1/8 in, 11/32 in, 13/32 in, 15/32 in, 3/16 in, 3/32 in, 3/8 in, 5/16 in, 5/32 in, 7/16 in, 7/32 in
- Smallest Drill Bit Size
- 1/16 in
- Depth:Dia. Ratio
- 4xD
- Overall Length
- 1 7/8 in, 2 1/4 in, 2 3/4 in, 3 1/8 in, 3 1/2 in, 3 3/4 in, 4 in, 4 1/4 in, 4 1/2 in, 4 3/4 in, 5 in, 5 1/4 in, 5 1/2 in, 5 3/4 in, 6 in
- Wire Rope Length
- 1 7/8 in, 2 1/4 in, 2 3/4 in, 3 1/8 in, 3 1/2 in, 3 3/4 in, 4 in, 4 1/4 in, 4 1/2 in, 4 3/4 in, 5 in, 5 1/4 in, 5 1/2 in, 5 3/4 in, 6 in
- Length
- 1 7/8 in, 2 1/4 in, 2 3/4 in, 3 1/8 in, 3 1/2 in, 3 3/4 in, 4 in, 4 1/4 in, 4 1/2 in, 4 3/4 in, 5 in, 5 1/4 in, 5 1/2 in, 5 3/4 in, 6 in
Description

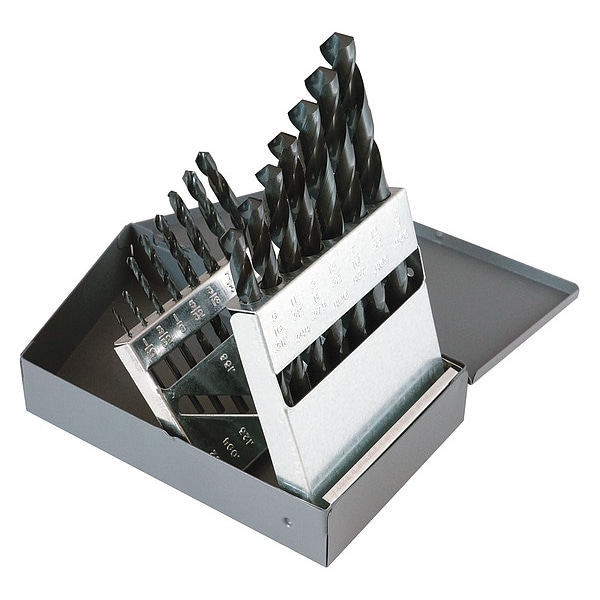

The WESTWARD 5UDP3 is a jobber-length drill bit set comprising 15 pieces with sizes ranging from 1/16 inch to 1/2 inch in fractional increments. Manufactured from high speed steel with a material grade as specified, these drill bits feature a conventional point type with a right-hand spiral direction. Intended for drilling applications in cast iron and steel (ISO material codes K and P), the set includes a metal drill index for organization. The drill bits have a two-flute spiral design and straight shanks, with overall lengths varying by size from 1 7/8 inches up to 6 inches.
Key Features:
- Drill bit sizes included: 1/16", 3/32", 1/8", 5/32", 3/16", 7/32", 1/4", 9/32", 5/16", 11/32", 3/8", 13/32", 7/16", 15/32", 1/2"
- Jobber-length drill bits for general-purpose machining applications.
- Material: High speed steel with a black oxide finish
- Point angle: 135 degrees with conventional point type
- Flute: 2-flute spiral with helix angles from 21 to 34 degrees
- Shank diameter: 1/6 inch, straight shank type
- Spiral direction: Right hand cutting
- Overall lengths range from 1 7/8 inches to 6 inches depending on size
- Primary material application ISO codes: K and P (cast iron and steel)
- Includes a metal drill index for storage
