Shop WESTWARD

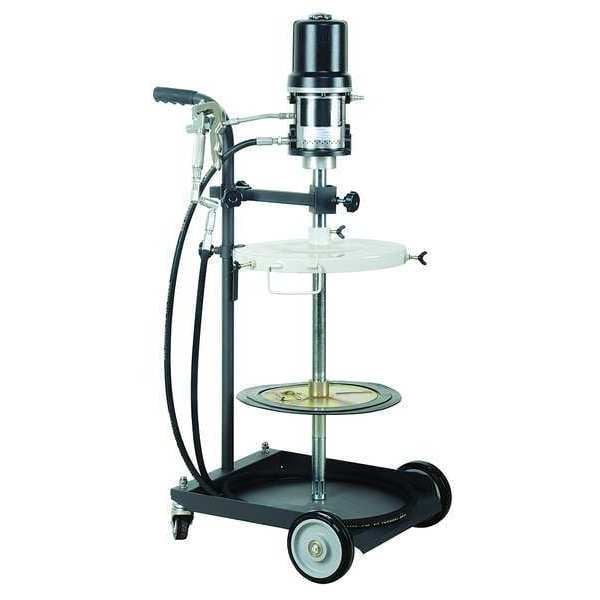

Air Drum Pump, 9,000 psi, 50:1

  • Mfr # 29FX03

  • Zoro # G5790276

product price:  $1,515.99
/ea
Free Shipping & Returns

Key Features

Hose Length
156 in
Fits Container Size
16 gal, 120 lb
Includes
Grease Gun, Grease Hose
Max. Viscosity
NLGI #2
Application
Ideal for Transfer Grease in High Volume and Long Distance
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
29FX03
Zoro #
G5790276
UPC #
190735788714
Country of Origin
China

Dimensions

Hose Length
156 in
Fits Container Size
16 gal, 120 lb
Air Motor Size
3 in
Tube Dia.
1 1/4 in
Drum Cover Dia.
15 1/8 in
For Container Size
16 gal
Air Inlet Size
1/4 in FNTP
Hose Outside Diameter
5/8 in
Suction Tube Length
19 in
Spout Connection Size
3/8 in
Spout Length
5/8 in
Air Inlet Connection Size
1/4 in
Hose Inside Diameter
1/4 in

Details

Item
Air Drum Pump
Includes
Grease Gun, Grease Hose
Max. Viscosity
NLGI #2
Application
Ideal for Transfer Grease in High Volume and Long Distance
Consumption @ 100 PSI
21.6 cfm
Material
Nitrile Rubber and Steel
Volume per Minute
4 lb
Features
Complete Set of Fluid Transfer Accessories Gives End User Trouble-Free Using Experience
Max. Pressure
9,000 psi
Grease Type
NLGI 1 and 2
For Use With
Grease
Max. Outlet Pressure
9,000 psi
Air Consumption
21.6 cfm
Ratio
50:01:00
Housing Material - Pumps
Nitrile Rubber, Steel
Power Source
Air
For Container Type
Drum
Hose Tube Material
Buna-N
Compatible Chemicals
Grease
Hose Cover Material
Buna-N
Includes Spout
Yes
Mounting Bracket Included
No Mounting Bracket Included
Wetted Material
Buna-N/Polyurethane/PTFE
Includes Discharge Hose
Yes
Hazardous Location Class
Not Rated
Variable Speed
No
Self-Priming
No
Pump Connection Type
FNPT
Pump Connection OD
1/4 in
Duty Cycle
Continuous
Static Protection
Not Groundable
Spout Connection Type
BSP
Maximum Outlet Pressure
9,000 psi
Pump Technology
Plunger
Maximum Air Pressure
175 psi
Discharge Connection Type
FNPT
Pump Connection ID
1/4 in
Includes Bung Adapter
No
Pressure Ratio
50:1
Cart Type Included
Trolley
Housing Finish
Zinc Plated
Container Cover Type Included
Drum Cover
Discharge Tube Outlet ID
1/4 in
Includes Suction Tube
Yes
Seal Material
Buna-N; PTFE;Polyurethane
Includes Nozzle
Yes
Includes Follower Plate
Follower Plate Included
Chemical Compatibility
Grease
Nozzle Operation
Manual
Compatible NLGI Viscosity Grade
2
Suction Tube OD
1 1/4 in
Maximum Fluid Temperature
176 Degrees F
Runs Dry
No
Suction Tube ID
3/8 in
Minimum Air Pressure
70 psi
Air Inlet Connection Type
FNPT
Minimum Fluid Temperature
80 Degrees C
Housing Material
Nitrile Rubber/Steel
Not Recommended Chemicals
DEF, Oil
Spout Material
Steel
Discharge Tube Outlet OD
1 in
Meter Type Included
No Meter Included
Suction Tube Material
Steel

Description

Air Drum Pump, Spout Connection Size 3/8 in, Suction Tube Material Steel, Self-Priming No, Overall Length Not Applicable, Discharge Connection Type FNPT, Spout Length 5/8 in, Thermal Protection Not Applicable, Air Outlet Size Not Applicable, Air Consumption 21.6 cfm, Hose Length 156 in, Variable Speed No, Includes Discharge Hose Yes, Noise Level Not Applicable, Max. Viscosity NLGI #2, Duty Cycle Continuous, Includes Suction Tube Yes, Includes Bung Adapter No, Includes Nozzle Yes

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
