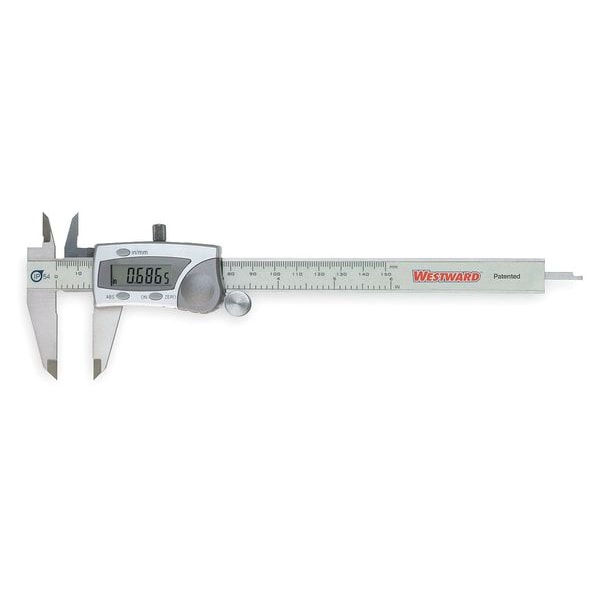

Westward Digital Caliper, 0-6 In, Oil Resistant 2ZA60 - main

Digital Caliper, 0-6 In, Oil Resistant

  • Mfr # 2ZA60

  • Zoro # G2784302

product price: $111.99
/ea
Free Shipping & Returns

Key Features

Caliper Material
Stainless Steel
Caliper Range
0-6 in /0-150mm
Accuracy
+/- 0.001 in, +/- 0.02 mm
SPC Output
Yes
Resolution
0.0005 in/0.01 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
2ZA60
Zoro #
G2784302
UPC #
190735804162
Country of Origin
China

Dimensions

Jaw Depth
1 9/16 in
Dimension Type
Inch/Metric
Measures Inside Dimension
Yes
Depth Rod Shape
Rectangular
Jaw Depth - Upper Jaw
5/8 in
Measures Outside Dimension
Yes
Measures Depth
Yes
Battery Size
CR2032

Details

Item
OD/ID Digital Caliper
Caliper Material
Stainless Steel
Caliper Range
0-6 in /0-150mm
Accuracy
+/- 0.001 in, +/- 0.02 mm
SPC Output
Yes
Resolution
0.0005 in/0.01 mm
IP Rating
Not Rated
Absolute Positioning
Yes
Long Form Calibration Certificate
No
Caliper Grouping
Digital Caliper
Coolant Resistant
No
Maximum Measurement - mm
150 mm
Case Type
Plastic Case
Non-Magnetic
No
Display Type
LCD
Measures Step
Yes
Left-Handed Operation
No
Repeatability
1 division
Range
0 in to 6 in, 0 to 150 mm
Minimum Measurement - Fractional Inch
0 in
Water Resistant
No
Graduations - Lower Scale
0.1 in
Graduations - Upper Scale
1 mm
Minimum Measurement - mm
0 mm
Maximum Measurement - Inch
6 in
Measurements
4-Way
Jaw Actuation Type
Thumb Wheel
Jaw Material
Stainless Steel
Jaw Shape
Standard
Includes Battery
Yes
With Locking Nut
Yes
Minimum Measurement - Inch
0 in
Linear Encoder Type
Electrostatic Capacitance
Dust Resistant
No
Includes Case
Yes
Data Output Type
Cabled
Data Output Wired Connection
Mituoyo USB-ITN-F 5-Pin
Included Certification
Not Included
Inch Graduations
0.1 in (Lower Scale)
Compatible SPC Cable
Mituoyo USB-ITN-F 5-Pin Cable: SPC-B+C03
Millimeters Measured - Maximum
150 mm
Millimeter Graduations
1 mm (Upper Scale)
Inches Measured - Minimum
0 in
Battery Type
CR2032
Millimeters Measured - Minimum
0 mm
Inches Measured - Maximum
6 in

Description

OD/ID Digital Caliper, Caliper Range 0-6 in /0-150mm, Resolution 0.0005 in/0.01 mm, IP Rating Not Rated, SPC Output Yes, Accuracy +/- 0.001 in, +/- 0.02 mm, Caliper Material Stainless Steel, Absolute Positioning Yes, Jaw Depth 1 9/16 in, Long Form Calibration Certificate No, Includes Not Applicable, Standards Not Applicable
